Description

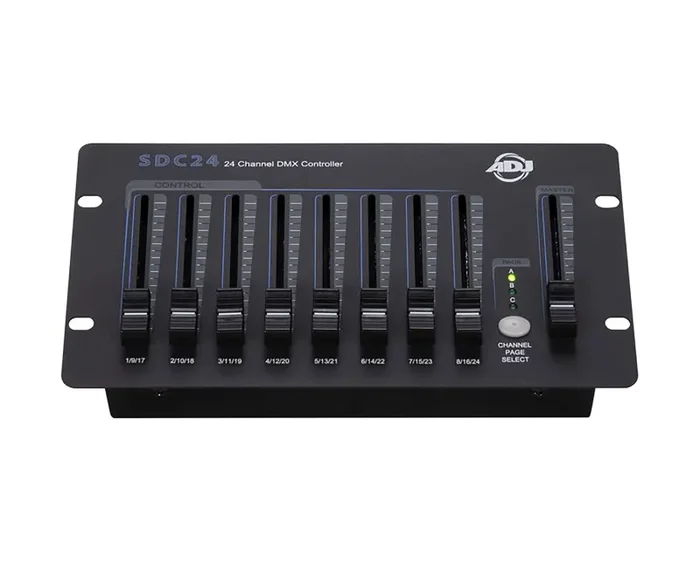

ADJ SDC24, Basic 24-Channel DMX Controller

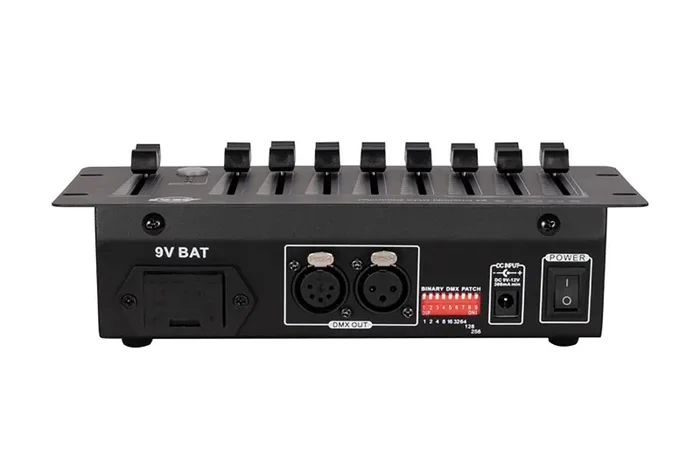

The ADJ SDC24, Basic 24-Channel DMX Controller operates via an external 12VDC power supply (included) or a 9VDC battery (not included). SDC24 has 5-pin and 3-pin DMX output sockets, DIP switches to set a starting DMX channel, a master dimmer fader, an on/off switch and Channel Page button with Indicator LEDs. This a great compact controller for product demos or manual control of LED or conventional fixtures.
Product Specifications:
DIP Switches to Set Starting DMX Channel
3pin & 5pin DMX Outputs
On/Off Switch
Channel Page button with Indicator LED’s
DC9V-12V Power Supply Input
9V Battery slot
DC9V-12V 300mA min or 9V Battery (Not Included)
Power Consumption: DC9V 40mA 0.36W, DC12V 40mA 0.48W
Length: 4.73” (120mm)
Width: 9.06” (230mm)
Height: 2.23” (56.66mm)
Weight: 1.86 lbs. (0.84kg)
Approvals / Ratings:
CE Approved
cETLus
IP20
UKCA
Included Accessories:
9V 1A Power Supply
