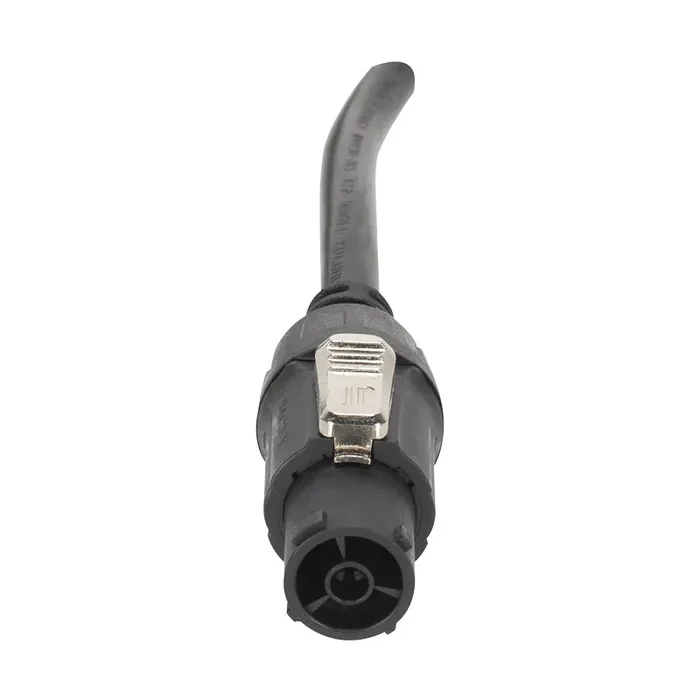

ADJ SIP65MPC, Power Cord with Locking IP65 Fixture Side Connector to IP20 Male Edison Plug
The ADJ SIP65MPC, Power Cord with Locking IP65 Fixture Side Connector to IP20 Male Edison Plug is designed for secure and reliable power connections in various environments. This cable features a robust, molded locking IP65-rated connector on the fixture side, ensuring protection against dust and water ingress, making it ideal for outdoor or wet location applications. On the other end, the cable terminates with a 120V, IP20-rated male Edison plug, suitable for standard indoor power outlets.
Product Specifications:
Contacts: 2+PE
Rated Current: 15A
Rated Voltage: 250V AC VDE (300V AC UL)
Contact Resistance: ≤5mΩ
Dielectric Strength: 4000V DC (1600V/min AC UL)
Insulation Resistance: >1000MΩ
Service Life: >1000 Mating Cycles
Shell: PA
Contacts: Cu Alloy
Contact Surface: Ag
Ingress Protection: IP65
Flame-retardant Grade: UL94-V0
Temperature Range: -22F to 176F (-30C to +80C)
Standard: IEC61984/UL98
