Description

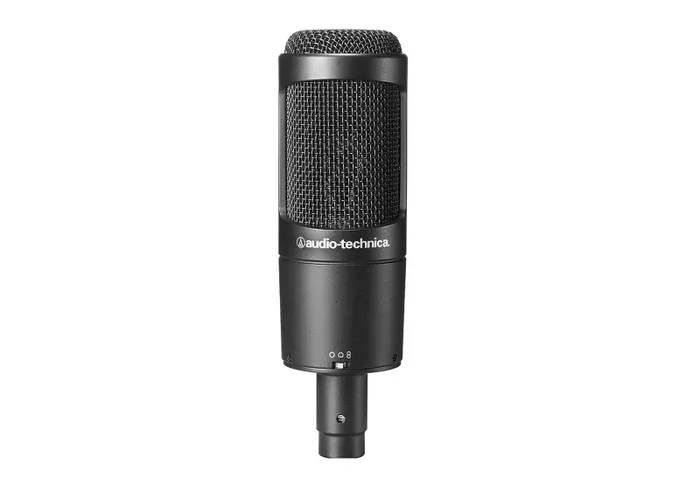

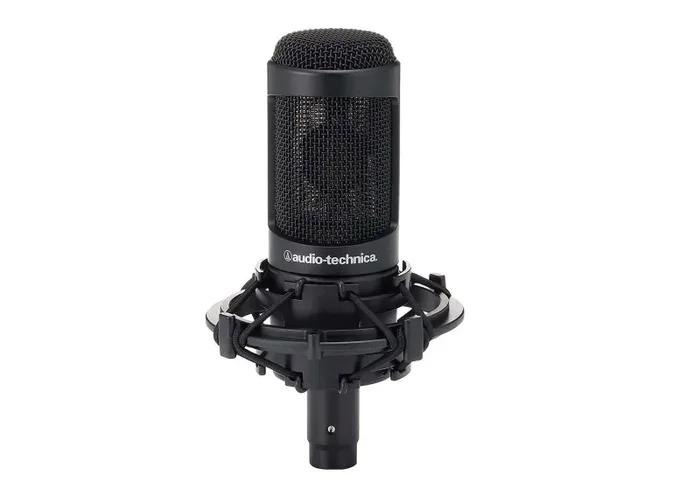

Audio-Technica AT2050 Multi-Pattern Condenser Microphone – Black
The Audio-Technica AT2050 multipattern condenser microphone offers a smooth and detailed sound along with versatile use cases for home-based musicians, vocalists, and project studio engineers. The dual large-diaphragm condenser capsule enables the mic to provide omnidirectional, cardioid, and figure-8 polar patterns, which gives the AT2050 the flexibility to serve a wide variety of voice and instrument miking applications. Plus, the supplied shockmount helps keep extraneous handling and foot noise down.
Engage the -10 dB pad to increase headroom and capture incredibly loud sources up to 159 dB SPL without distortion. When low-frequency rumble/hum or overwhelming bass invade your signal, turn on the 80 Hz high-pass filter switch to attenuate the lows without resorting to EQ. Since the AT2050 is a solid-state true condenser with an XLR output, it should be mated to an XLR-equipped mic preamp capable of sending 48V phantom power, or anything between 11 to 52 VDC.
Product Specifications:
Microphone:
Primary Applications: Live Sound, Studio Recording
Form Factor: Large Diaphragm Mic / Stand/Boom Mount
Intended Sound Sources: Vocals, Speech/Voice Over, Instrument
Sound Field: Mono
Operating Principle: Pressure Gradient
Capsule: Condenser
Polar Pattern: Cardioid, Figure-8, Omnidirectional
Pattern Selection: Switched (Adjustable on Mic)
Orientation: Side Address
Circuitry: Solid-State
Pad: -10 dB
High-Pass Filter: 80 Hz, 12 dB/Octave
Tone Adjustment: None
Gain Adjustment: None
Indicators: None
On-Board Controls: High-Pass Filter, Pad, Polar Pattern
Windscreen: None
Performance:
Frequency Range: 20 Hz to 20 kHz
Maximum SPL:
149 dB SPL (1 kHz, 1% THD)
159 dB SPL (1 kHz, 1% THD, with Pad)
Impedance: 120 Ohms
Sensitivity: -42 dBV/Pa (Open Circuit Voltage)
Dynamic Range: 132 dB (1 kHz, at Max SPL)
Signal-to-Noise Ratio: 77 dB A-Weighted (1 kHz, at 1 Pa/94 dB SPL)
Equivalent Noise Level: 17 dB A-Weighted
Connectivity:
Output Connectors (Analog): 1 x XLR 3-Pin Male (on Mic)
Headphone Connector: None
Power:
Bus Power: None
Operating Voltage: 11 to 52 V (Phantom Power)
Operating Current Consumption: 4.7 mA
Color: Black
Mounting: Shockmount (Included)
Included Case: Pouch
Included Filters: None
Dimensions:
ø: 2.05 x L: 6.69″
ø: 5.21 x L: 16.99 cm
Product Weight: 14.5 oz / 411 g
Shipping Weight: 1.885 lbs.
Shipping Dimensions: 9.75 × 9.7 × 2.85 in
