Description
Audio-Technica AT8022 X/Y Stereo Phantom and Battery Powered Field Microphone
The Audio-Technica AT8022 X/Y Stereo Microphone captures ambiance, live performances and any audio source with accurate stereo imaging and detailed frequency response. The microphone is powered with external phantom power or a 1.5V AA battery making it ideal for use with cameras and portable recording devices.

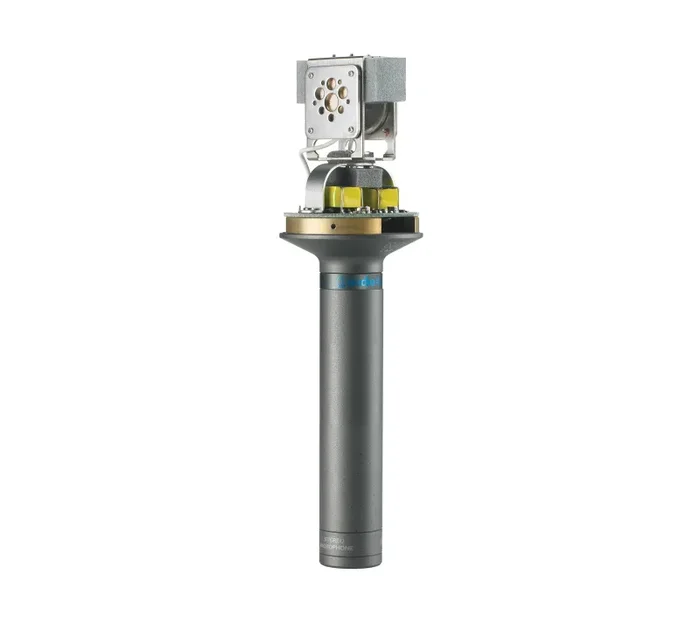

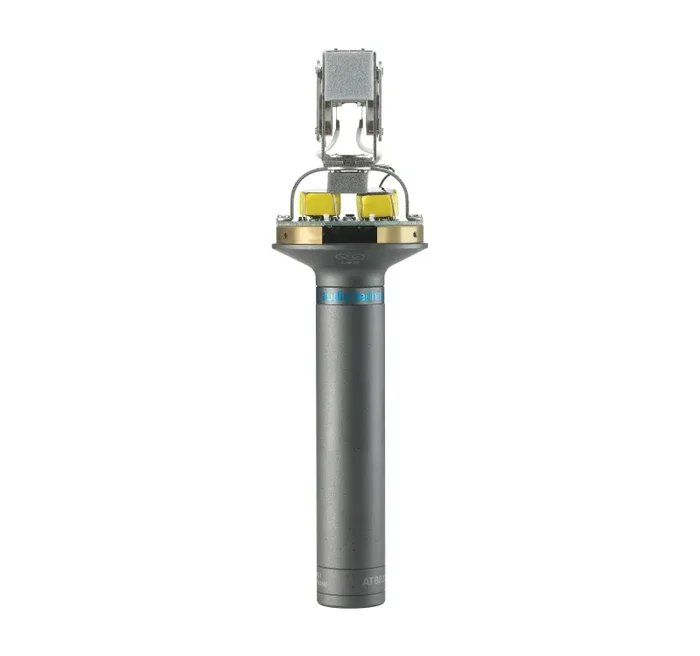

The capsule features two condenser capsules mounted in an X/Y configuration. Its innovative coincident capsule configuration produces accurate stereo image in a smaller housing. The microphone features a 5-pin XLR output connector. Dual 3-pin XLR and single 1/8″ (1.5mm) stereo mini cables are supplied. Also included is a stand adapter, windscreen and protective pouch.
Product Specifications:
Microphone:
Sound Field: Stereo
Element Type: 2x Electret Condenser
Polar Pattern: Cardioid
Orientation: End Address
Circuitry: Solid-State
Pad: No
High-Pass Filter: 80 Hz, 18 dB/Octave
Filter & EQ:
Low-Cut Filter: 80 Hz, 18 dB/Octave
Gain Adjustment: No
Controls: On/Off, Low Cut/HPF
Performance:
Frequency Response: 20 Hz to 15 kHz
Maximum SPL:
128 dB (Phantom Power, 1 kHz, 1% THD)
120 dB (Battery Power, 1 kHz, 1% THD)
Sensitivity:
-38 dB (Phantom Power)
-38 dB (Battery Power)
Dynamic Range:
109 dB (Phantom Power, 1 kHz, at Max SPL)
101 dB (Battery Power, 1 kHz, at Max SPL)
Connectivity:
Analog Output: 1x XLR 5-Pin Male
Cable Length: 6.5′ / 2 m
Power Sources: Phantom Power
Operating Voltage: 11 to 52 V
Battery Type: 1x AA (Not Included)
Color: Black
Mounting Thread Size: 5/8″-27 Female
Dimensions:
ø: 1.9 x L: 7.3″ / ø: 47.6 x L: 186 mm
Product Weight: 0.5 lbs. / 247 g
Shipping Weight: 1.85 lbs.
Shipping Dimensions (LxWxH): 9.55 x 5.05 x 2.95″
