Description
Avante Audio A12, 12″ 2 Way Active PA Speaker with DSP

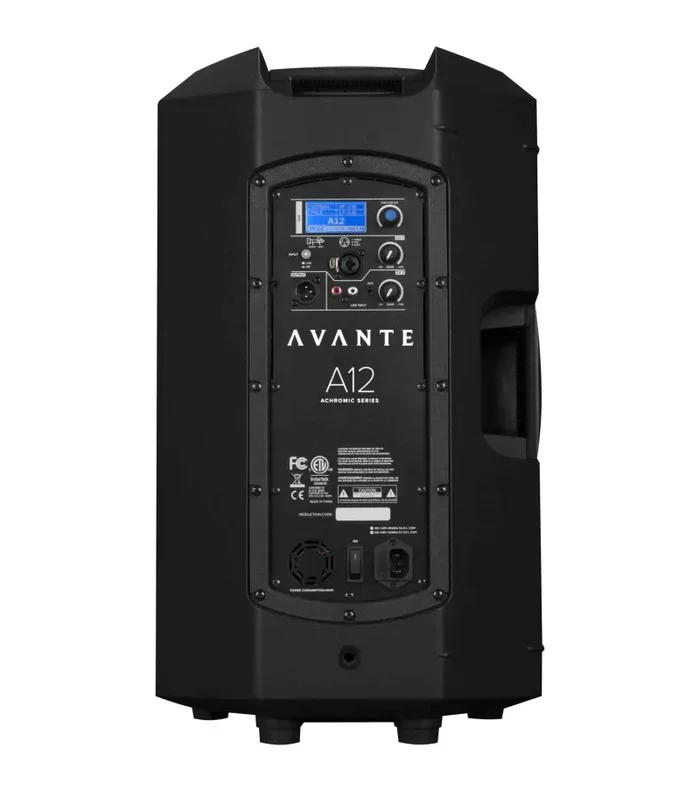

The Avante Audio A12 is a 12″ 2 Way Active PA Speaker with DSP. Achromic Series 12-inch, 2-way Active Loudspeaker. Built-in Digital Signal Processing (DSP) with LCD screen, EQ & multiple presets. he Class-D amplifier delivers 350W (RMS) to the woofer, while the Class-AB amplifier drives 50W (RMS) to the high-frequency compression driver, which combine to provide a frequency range of 60 Hz to 20 kHz with a peak SPL of 123 dB. The integrated DSP offers four modes: Normal, Club, Live, and Speech, allowing you to custom tailor the speaker to your specific application. Additionally, there is a two-band EQ to further enhance the sound. The H-PP molded enclosure features a steel grille and a dual position pole mount with 0 or 7.5° options. The rear panel offers a balanced combo XLR-1/4″ input, two RCA inputs, and a balanced XLR output for connecting additional speakers. There are independent gain controls for the XLR and RCA inputs.
Product Specifications:
Frequency Range: 60hz-20kHz
Nominal Coverage: 90˚ x 60˚
Output (Peak SPL @ 1M): 123dB
Drivers: 12-inch woofer with 2.5-inch voice coil + 1.35-inch HF Compression Driver
Inputs: Balanced Female XLR ¼-inch combo jack, 2x RCA (phono)
Output: Balanced Male XLR
Enclosures: H-PP Molded
Grill: 1.2mm Steel
Handles: 1 on top / 1 on side
Fly Points: 2 on top / 1 on back
Pole Mounting: Dual position 0-degrees or 7.5-degrees
Power Input: 120V/60Hz or 240V/50Hz (country specific)
Power Consumption: 400W
Dimensions: 24.7”x14.4”x13.9” / 628x365x354mm
Weight: 35 lbs. / 15.9 kg.
