Description
B-Stock: LD Systems MON 81 A G2, 8 Inches Active Stage Monitor
The LD Stinger MON81AG2 is an especially compact active monitor with broad frequency response and a maximum sound-level pressure of 116dB for versatile use on stage.
The 8″ coaxial speaker with an integral 1″ HF driver attains a dispersion angle of 75°x75°, which is beneficial in multifaceted applications as a stage monitor. The coaxial configuration results in a very homogenous sound in the entire dispersion area plus very low susceptibility to feedback. The active monitor is driven by a Class AB power amplifier with an output power of 320W Peak; short-circuit protection and a limiter ensures dependable operation.

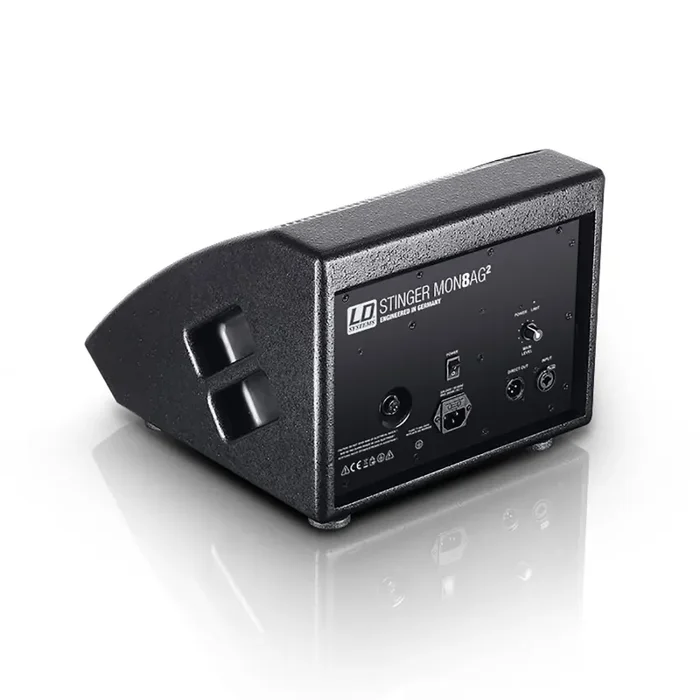

The signal is connected and looped through using an XLR/ jack combo socket and the XLR output. The rear connector panel is rounded out by volume control, LED indicators, and the IEC power socket.

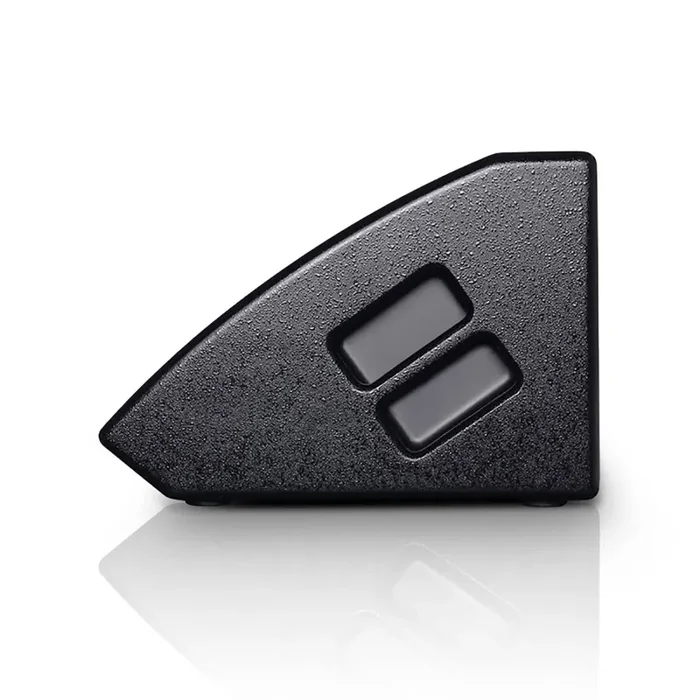

The elegant bass-reflex housing made of 15mm multiplex is finished with a durable coating and has ergonomically milled handles and a metal grille to protect the speaker. The monitor angle is 35°.
B-stock may have minor cosmetic scratches or dents and furthermore B-Stock is not covered by full manufacturer warranty. Please call for details.
Product Specifications:
Product Type: PA loudspeaker
Type: Powered
Low/Mid Driver Dimensions: 8″
Woofer Size: 203 mm
Woofer Type: coaxial loudspeaker
Woofer Magnet: Ferrite
Woofer Brand: Custom-made
Woofer Voice Coil: 2″
Woofer Voice Coil (mm): 50.8 mm
HF Driver Dimensions: 1″
HF Driver Size: 25.4 mm
HF Driver Magnet: Ferrite
HF Driver Brand: Custom-made
HF Driver Voice Coil: 1″
HF Driver Voice Coil: 25.4 mm
Amplifier: Class A/B
Dispersion (H x V): 75 x 75 °
RMS: 80 W
Peak Power: 320 W
Frequency Response: 90 – 20000 Hz
Crossover Frequency: 2400 Hz
SPL (1W/1m): 97 dB
Max. SPL (continuous): 111 dB
Max. SPL (peak): 116 dB
Protection Circuits: limiter, short circuit
Controls: On / Off, volume
Indicators: Limit, Power
Line Inputs: 1
Line Input Connectors: 6.3 mm jack, XLR
Line Outputs: 1
Line Output Connectors: XLR
Operating Voltage: Transformer
Operating Voltage: 230 V AC / 50-60 Hz
Cabinet Material: 15 mm Birch Plywood
Cabinet Construction: Bass Reflex
Monitor Angle: 35 °
Width: 320 mm
Depth: 250 mm
Height: 361 mm
Weight: 10,6 kg
Features: Ergonomically Shaped Insert Handles
