Description

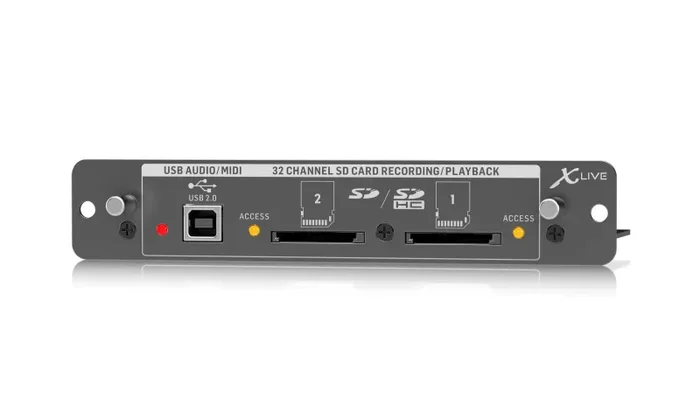

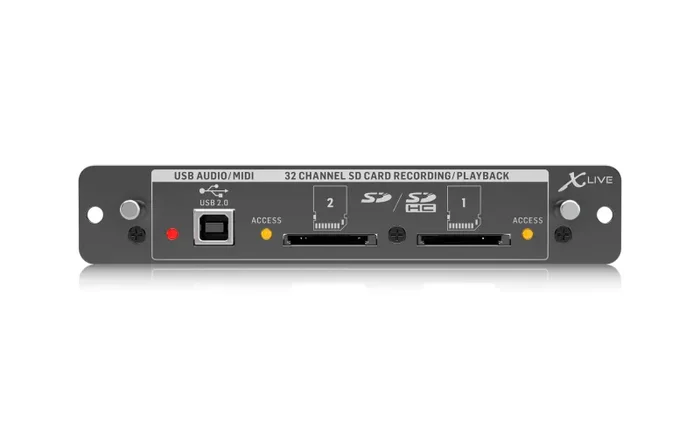

Behringer X-LIVE, X32 Expansion Card for 32-Channel Live Recording/Playback
The X-LIVE interface card expands on the already stellar performance of the X-USB card that has been standard in X32 consoles for years. The same 32-channel bi-directional audio I/O via USB 2.0 is available, providing 32 channels for recording and playback, plus remote operation of your DAW via HUI/Mackie Control emulation. The addition of dual SD/SDHC slots provides fully independent recording and playback of up to 32 channels of uncompressed WAV files in consistent sessions – up to the maximum capacity of the SD cards. Multi-channel recording without a laptop, as well as virtual sound checks, live backing-track support, accurate marker handling and manipulation, and full remote operation from PC, Android or iPad apps and X-TOUCH control surfaces. All of this barely begins to scratch the surface of what X-LIVE can bring to your X32.
X-LIVE Makes Multi-Tracking a Breeze
The X32’s recording capability just got even more robust, thanks to the new X-LIVE Expansion Card and USB Audio/ MIDI Interface. Whether you’re multitracking your live performances directly to a PC/Mac, or to the flash media in your console, X-LIVE makes it easier than ever. Equipped with dual SD/SDHC-card slots, X-LIVE provides uncompressed recording and playback of up to 64 GB of memory, enough to capture a 3 hour and 20 minute continuous 32-track session – all of which can be done without ever leaving the X32 environment. Just think about it, no external wiring or computer issues – everything you need is in a single location. And X-LIVE is equally at home in either the recording studio or the performance venue.
Independent USB & SD Operation
The X-LIVE USB and SD interfaces can be operated simultaneously and independently. For example, you may want to play back your recorded session from an SD card and record the tracks via USB into your favorite DAW for post-processing. Or, you might need to prepare live backing tracks in your DAW and then transfer them to an SD card in real time, while setting performance markers on-the-fly. You can even record using both the USB and SD simultaneously for redundancy. Best of all, these operations can be performed without routing tracks through your console channels, leaving the X32 completely free to craft the perfect FOH mix.
X-LIVE Remote Control
All of X-LIVE’s functionality and transport controls can be controlled remotely via PC, Android * or iPad * apps, assignable controls or compatible hardware control surfaces, such as the BEHRINGER X-TOUCH. This powerful tool lets you cue up and initiate backing tracks, start or stop recording/ playback, perform virtual sound checks and more – even when you’re away from the X32 console.
Multi-Channel WAV Format
For optimal read/write performance on a huge variety of SD and SDHC cards, X-LIVE uses standard uncompressed 32-bit PCM format multi-channel WAV files. An X-LIVE recording session may consist of either one or several takes, and capture up to a maximum of 24 hours of consistent recording or playback. Multi-channel WAV files can be imported directly into most popular DAW applications, including the free open source audio editor Audacity. You can even export your 32-bit WAV files, which allows you to prepare backing tracks offline, such as when you’re away from your X-LIVE equipped X32 mixer.
On Your Mark…
Markers can be set at any time during recording, playback – or even while in pause mode. Session loading and marker selection can easily be manipulated via assignable controls, or remotely via apps, X-TOUCH control surfaces, or even MIDI. Once you set a marker roughly where you want it, a dedicated utility lets you fine-tune it for those occasions when playback requires the ultimate precision, such as alignment with specific transients in your audio. A convenient pre-listen feature helps you place any marker at an exact point in time. Utilities also allow deleting sessions/markers or formatting an SD card, which is always a good idea before recording any important performance. And virtual sound-checks have never been easier, especially when you use X-LIVE’s powerful marker and remote-control functionality.
Powerful Live-Playback Machine
Assigning X-LIVE controls to X32 user buttons provides a great way to instantly jump to and play performance markers, delivering powerfully dynamic content to live theatrical events. Operations that previously required hardware samplers, or sophisticated software running on dedicated computers, can now easily be done right on your X32, from a tiny SD card that takes up virtually no room at all.
The Real Deal
X-LIVE turns your X32 into a powerful, 32-track recording console that retains all of its incredible live sound mixing functionality, features that are still available – even while recording the same live show you’re dialing to a packed house. And that amazing performance can bring out the “wow” in your studio recording applications, too. With over 3 hours of uncompressed 32-channel WAV files on 2 SD/SDHC cards, you can easily capture a large production live show – without getting anywhere near an HDD.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
Channels: 32
USB: 1 x Type B
Data I/O: 2 x SD/SDHC card slot
Package Weight: 1 lbs
Box Dimensions (LxWxH): 6.5 x 5.43 x 1.18″
