Description

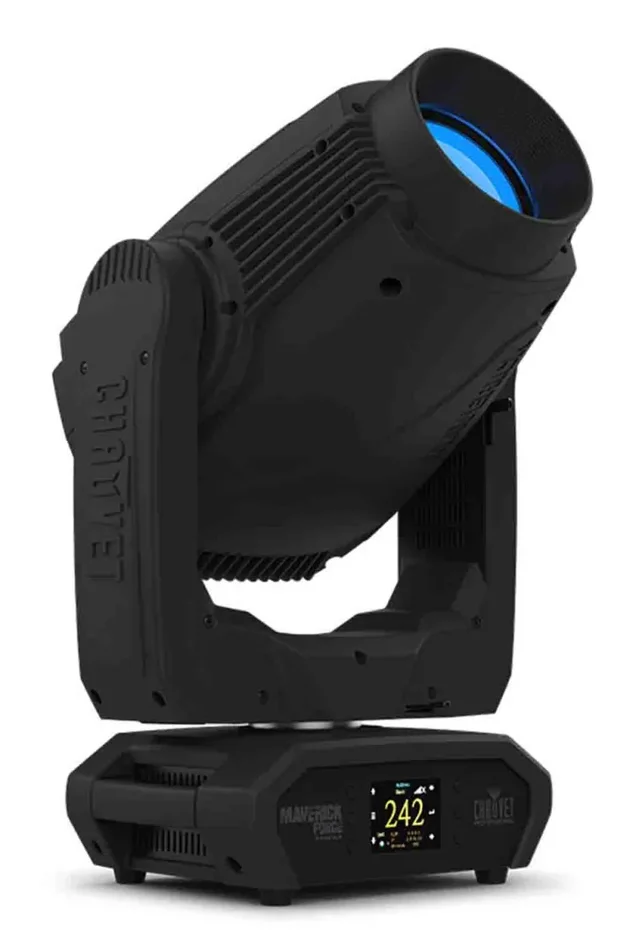

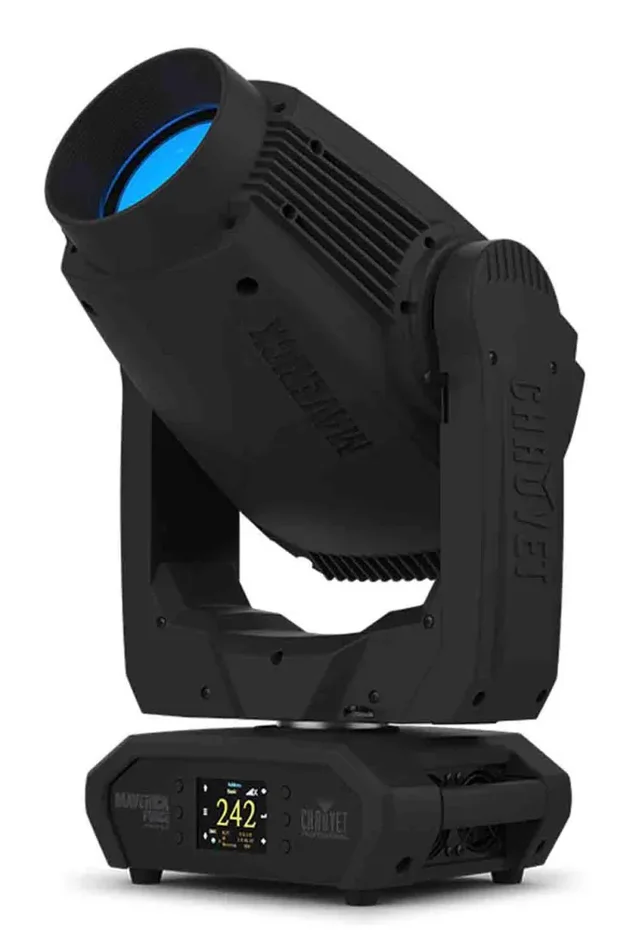

Chauvet Pro Maverick Force S Profile Lightweight 350 W LED Yoke Profile Fixture
The Chauvet Pro Maverick Force S Profile Lightweight 350 W LED Yoke Profile Fixture is ideal for small to medium multi-faceted projects in need of seamless color-mixing, advanced optics, framing shutters, and control options in a lightweight frame. Just over 50 lbs, this compact unit features a smart optical system that maximizes the output of 14,000 lumens and provides high-quality color mixing with a CTB filter. An 8-slot color wheel is also added with split-color combinations in mind. Maverick Force S Profile includes a custom framing system equipped with dual axis movement and a 120° complete module rotation for fast beam shaping. A speedy effects artillery includes motorized iris, frost, focus, a 5-facet prism and wide zoom ranging from 4.5° to 41.6°. Additionally, custom gobos created in collaboration with leading designers can be stacked on top of one another for dynamic effects. That is a lot packed in a small frame standing just over 2 ft tall. Control as you see fit with DMX, sACN, Art-Net or W-DMX.
Product Specifications:
Optical
Light Source: 1 LED (CW) 350 W, (2.7 A), 8400K, 50,000 hours life expectancy
Color Temperature (at full): 6937K
CRI: 69
CRI with CRI filter: 89.6
Front Lens Día: 119 mm
Beam Angle: 4.5° to 35.9°
Field Angle: 5.2° to 40.5°
Zoom Angle: 5.8° to 41.6°
Lumens – Source: 20,000
Lumens – Output: 14,669
Selectable PWM: 600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz
Dynamic Effects
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 7 + white, split colors, continuous scroll at variable speeds
Colors: CMY Wheels
Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 9 + open (metal), continuous scroll at variable speeds
Gobo Size (1): Gobo Wheel 1 (rotating): 25.5 mm (outside), 17 mm (image), 1.1 mm (max. thickness)
Framing Shutters: 4 blades, each with dual axis movement.
Framing Shutter rotation: 120°
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4
Construction / Physical
Dimensions: 15.5 x 9.8 x 25.0 in (361 x 238 x 639 mm)
Weight: 52.9 lb (24 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer
Connections
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3-pin and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: Art-Net, sACN, DMX, RDM, W-DMX
DMX Channels: 31 or 47
Art-Net Channels: 31 or 47
Modes/Personalities: 2 personalities (31, 47)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 100 V; 2 units @ 120 V; 5 units @ 208 V; 4 units @ 230 V; 5 units @ 240 V
Power and Current: 580 W, 5.82 A @ 100 V, 60 Hz [9.0 An in-rush]
Power and Current: 563 W, 4.75 A @ 120 V, 60 Hz [8.0 An in-rush]
Power and Current: 547 W, 2.69 A @ 208 V, 60 Hz [15.0 An in-rush]
Power and Current: 546 W, 2.44 A @ 230 V, 50 Hz [17.0 An in-rush]
Power and Current: 543 W, 2.33 A @ 240 V, 50 Hz [16.0 An in-rush]
Power and Current (resting): 86 W, 0.929 A @ 100 V, 60 Hz
Power and Current (resting): 85 W, 0.757 A @ 120 V, 60 Hz
Power and Current (resting): 82 W, 0.449 A @ 208 V, 60 Hz
Power and Current (resting): 81 W, 0.412 A @ 230 V, 50 Hz
Power and Current (resting): 79 W, 0.404 A @ 240 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC
IP Rating: IP20, dry location
Noise Level (ambient): 37.5 dB level @ 1 m
Noise Level (Static – Full): 47.1 dB level @ 1 m
Noise Level (Static – Eco): 37.9 dB level @ 1 m
Noise Level (Static – Auto): 38.1 dB level @ 1 m
Noise Level (Max): 45.9 dB level @ 1 m
Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)
What’s Included
Maverick Force S Profile
Seetronic Powerkon IP65 power cord
2 Omega brackets with mounting hardware
Quick Reference Guide
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
DMX cables
IP Rated Seetronic Powerkon Extensions
Flight Case
UPLOAD_08 software uploader
