Description

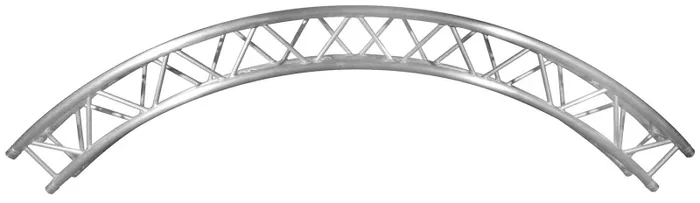

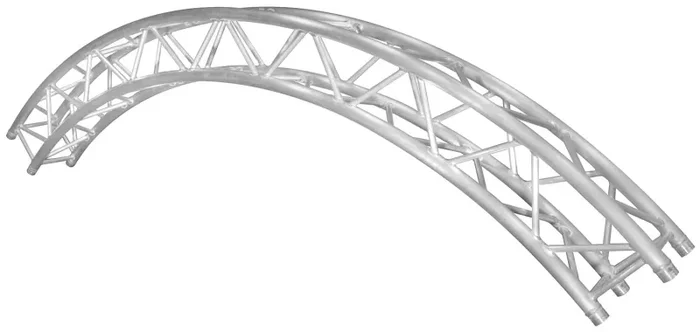

Chauvet Trusst CT290-430CIR-90, 3-m Arc Section High-grade, Lightweight Aluminum
Chauvet TRUSST 3-m Arc Section is comprised of modular aluminum components that are manufactured from high-grade and lightweight aluminum which is easy for transportation and setup. All TRUSST items are fabricated by SLV certified welders and made from 6082-T6 alloy aluminum.
The CT290-430CIR-90 arc truss with an outside diameter of 3.0 meters (9.84ft) and a 90° arc is compatible with many TRUSST accessories and ideal for a multitude of applications and designs when used in combination with TRUSST Sticks, Corners, Base Plates, Accessories and Clamps.
Product Specifications:
Outside diameter: 9.84 ft (3 m).
Inside diameter: 8.20 ft (2.5 m).
Arc: 90°.
Outer diameter tube: 2 in (50 mm).
Diagonal bracing: 0.75 in (20 mm).
Wall thickness: 0.08 in (2 mm).
Weight: 28.6 lb. (13 kg).
Approvals: SLV.
