Description

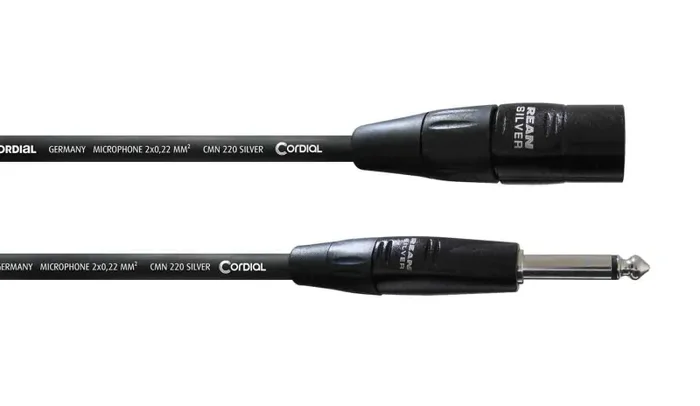

Cordial CIM MP, Unbalanced XLR Male to Mono Jack Microphone Cable

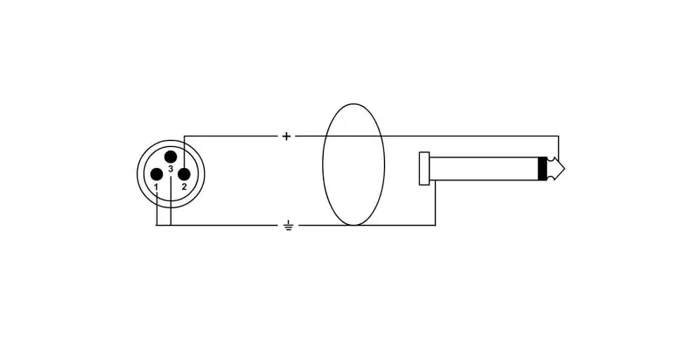

The Cordial CIM MP is an Unbalanced XLR Male to Mono Jack Microphone Cable. The CIM MP mono audop cable is usually used to transmit unbalanced signals like guitar or bass signals to the XLR input of your mixer. Pin 1 and 3 of the XLR plug are soldered together. Its REAN SILVER by NEUTRIK XLR male and 6.3 mm male plugs are designed in discreet black, developed exclusively for CORDIAL. Based on our Essentials Cable 1 bulk cable, it offers a conductor area of 0.22 mm² (AWG 24) and a spiral shield made of bare copper wires. The composition of conductors (28 x 0.10 mm) makes it very flexible and easy to be reeled. The CIM MP is in many points the cheaper alternative to the CPM MP, but it got a much higher conductor/conductor capacity, so that attenuations in the signal are possible, especially over longer distances.
Product Specifications:
Cable: Essentials Cable 1
Jacket: PVC
Cable Assign: MP
Connector Brand: REAN SILVER
Plugs:
1 XLR male 3-pole
1 1/4″ Plug mono
Conductor Area: 0.22 mm²
AWG: AWG 24
Composition of Conductor: 28 x 0.10 mm
Material: Bare Copper
Conductor Resistance: < 80 Ohm/km
Shielding: Spiral Shield (90% coverage)
Capacity cond.-cond. (pF/m): < 80 pF/m
Category: Microphone
Diameter: 5.9 ± 0.2 mm
Conductor Isolation: LDPE
