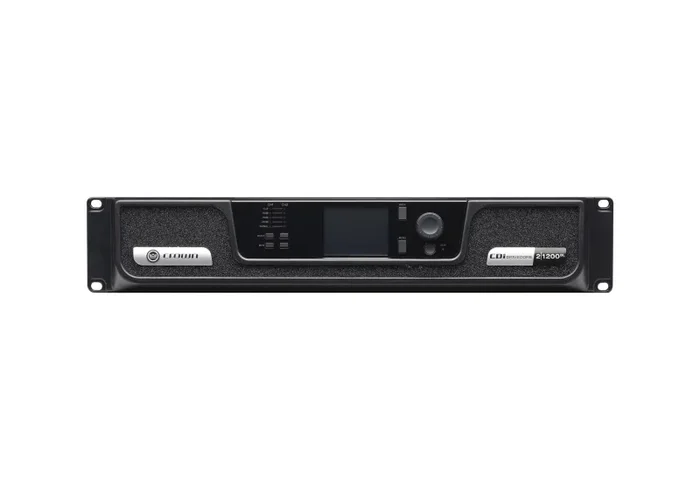

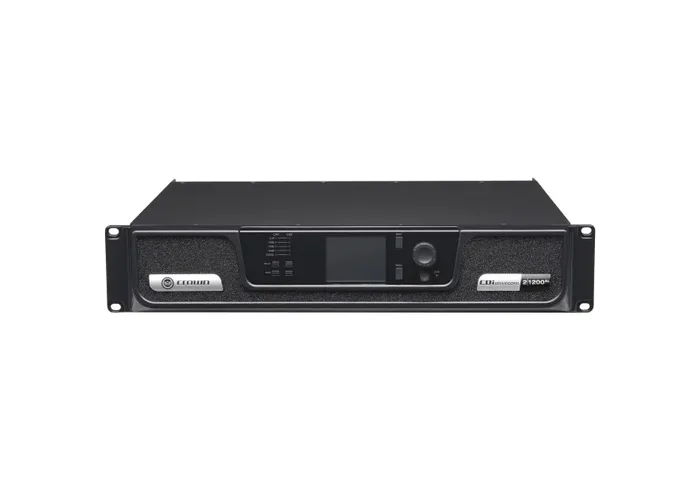

Crown Audio CDI2X1200BL, 2-Channel DriveCore Series Power Amplifier with BLU Link – 1200 W
The Crown Audio CDI2X1200BL, 2-Channel DriveCore Series Power Amplifier with BLU Link – 1200 W is utilizing technology derived from the flagship Crown DriveCore Install series amplifiers, providing an impressive mix of high-performance, rich feature set, and competitive cost. The CDi DriveCore 2|1200 offers streamlined functionality for most large-sized installation such as cinema, houses of worship, hotels, cruise lines, and more.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
The DriveCore integrated circuit eliminates hundreds of components within the amplifier, reducing the variability of component values and increasing reliability, resulting in remarkable audio fidelity from an efficient design. The 2-channel amplifier is simple to use and includes a network control & monitoring, an advanced DSP circuit, and an easy-to-use, front-panel interface. The amplifier is equipped with two BLU Link RJ45 connectors, which can receive and send 256 fault-tolerant audio channels.
The amplifier is capable of driving up to 100Vrms speaker loads without requiring a transformer and comes pre-loaded with JBL speaker tunings to help make installations quicker and easier. The CDi 2|1200 features an Ethernet port for using HARMAN’s HiQnet Audio Architect software for configuration and operation over a standard TCP/IQ network. The rear panel includes terminal block inputs and barrier strip outputs.
Product Specifications:
Number of Channels: 2
Amplifier Power Rating:
1200 W per Channel
2400 W Bridged
Load Impedance / Voltage:
Stereo:
2 / 4 / 8 / 16 Ohms per Channel
70 / 100 V per Channel
Bridged:
4 / 8 / 16 Ohms
140 / 200 V
Performance:
Frequency Response: 20 Hz to 20 kHz ±0.25 dB (8 Ohms)
Damping Factor: > 1000
Input Sensitivity:
Line:
0.7 Vrms to 2.5 Vrms / -.8 dBu to 10.2 dBu (at 8 Ohms)
1 Vrms to 3.5 Vrms / 2.2 dBu to 13.2 dBu (at 70 V)
1.4 Vrms to 5 Vrms / 5.2 dBu to 16.2 dBu (at 100 V)
Input Impedance:
10 Kilohms (Balanced)
5 Kilohms (Unbalanced)
Max Gain: 34 dB (at 4 Ohms, at 8 Ohms, at 70 V, at 100 V)
Max Input Level: +20 dBu
SNR: > 104 dB
THD: 0.35% (at Rated Power)
Intermodulation Distortion: ≤ 0.35%
Crosstalk: > 80 dB (Below Rated Power)
Common Mode Rejection Ratio (CMRR): > 70 dB
Signal Processing:
DSP: 32-Bit Floating Point DSP at 96 kHz
Audio Delay: Adjustable Up to 1000 ms per Channel
Crossover:
High-Pass:
16 to 20 kHz, 12/24/48 dB/Octave Bessel
High-Pass:
16 to 20 kHz, 6/12/24/48 dB/Octave Butterworth
High-Pass:
16 to 20 kHz, 12/24/48 dB/Octave Linkwitz-Riley
Low-Pass:
16 to 20 kHz, 12/24/48 dB/Octave Bessel
Low-Pass:
16 to 20 kHz, 6/12/24/48 dB/Octave Butterworth
Low-Pass:
16 to 20 kHz, 12/24/48 dB/Octave Linkwitz-Riley
EQ: 8-Band Parametric EQ per Channel
Limiting: Yes
Connectivity:
Analog Audio I/O:
1x Block 6-Pin Balanced Line Input
1x Barrier Strip 4-Pin Speaker Output
Digital I/O:
1x RJ45 Ethernet Input/Output (Control)
2x RJ45 BLU-Link Input/Output (I/O)
USB I/O: No
Power:
AC Input Power:
Universal: 100 to 240 VAC, 50 / 60 Hz
AC Power Connector: 1x IEC 15 A / NEMA 5-15
Current Consumption:
120 VAC:
3.6 to 7.2 A (1/8 Power)
5.4 to 9.1 A (1/3 Power)
230 VAC:
2 to 2.1 A (1/8 Power)
4.5 to 4.9 A (1/3 Power)
“Power Consumption:
120 VAC:
130 to 167 W (1/8 Power)
204 to 265 (1/3 Power)
230 VAC:
117 to 149 W (1/8 Power)
196 to 313 (1/3 Power)”
Physical:
Display & Indicators:
Front Panel: 1x Multi-Color Graphic LCD
Rackmount Size: 2 U
Cooling: Fan (Variable Speed)
Thermal Dissipation: 1068 BTU/hr (Maximum)
Dimensions: 19.0 x 3.5 x 14.7″ / 48.3 x 8.9 x 37.4 cm
Weight: 17.2 lbs. / 7.8 kg
