Description

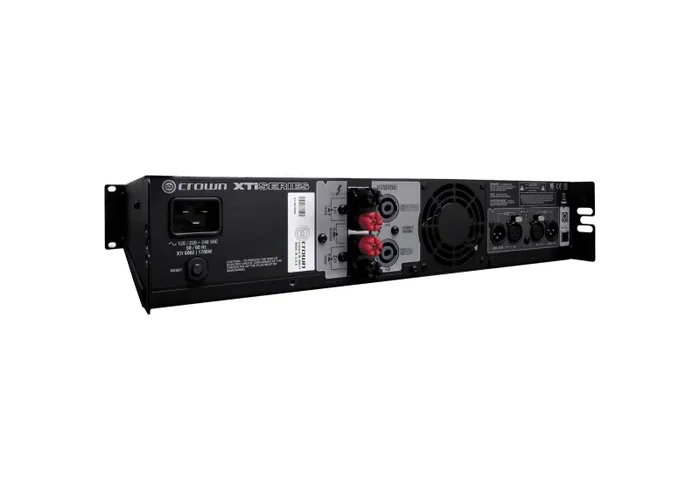

Crown Audio XTi 6002, 2-channel Power Amplifier – 2100W
The Crown XTi 6002 Power Amplifier delivers up to 1200W per channel at 8 ohms and is an ideal solution for sound reinforcement, nightclub installation, bands, theaters, DJ applications and much more. The XTi 6002 offers highly accurate sound reproduction with very low distortion, perfect for music or voice playback. It has a switch-mode universal power supply so it can be used anywhere. It handles a wide range of speaker impedances and outputs for a high degree of system compatibility.
An array of serious control features are implemented and easily accessed via the included HiQnet Band Manager & System Architect software packages. Crown’s Peak Plus Limiters provide the ultimate in system performance and protection. There are 3 user-defined fan modes, adjustable EQ, adjustable crossover filters and much more.
Product Specifications:
Number of Channels: 2
Amplifier Power Rating:
2 Ohm: 3000 W per Channel
4 Ohms:
2100 W per Channel
6000 W Bridged
8 Ohms:
1200 W per Channel
4200 W Bridged
Performance:
Protections: Overcurrent, Short Circuit, Thermal
Frequency Response: 20 Hz to 20 kHz +0/-1 dB
Damping Factor: > 500
Input Sensitivity: 1.4 Vrms
Input Impedance:
20 Kilohms (Balanced)
10 Kilohms (Unbalanced)
Max Gain: 32.9 dB (at 8 Ohms)
SNR: 103 dBA
THD: < 0.5%
Signal Processing:
DSP: Yes
Crossover: Yes
Connectivity:
Analog Audio I/O:
2x XLR Input
2x XLR Thru/Output
2x speakON NL4 Output
2x Binding Post Pair Output
USB I/O: 1x USB-B (Network)
Power:
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Current Consumption: 15.3 A
Power Consumption: 180 W (Idle)
Physical:
Display & Indicators:
1x Green LED (Clip/Level/Output/Signal, per Channel)
1x Green LED (Status, per Channel)
1x Red LED (Clip, per Channel)
1x Red LED (Temp, per Channel)
1x Blue LED (Power)
1x LCD (Backlit/Preset/Status)
Cooling: 2x Fan (Variable Speed)
Product Dimensions: 19.0 x 16.2 x 3.5 Inches
Product Weight: 24 lbs. / 10.9 kg
Shipping Weight: 28.4 lbs.
Shipping Dimensions (LxWxH): 22.5 x 22.5 x 7 Inches
