Description

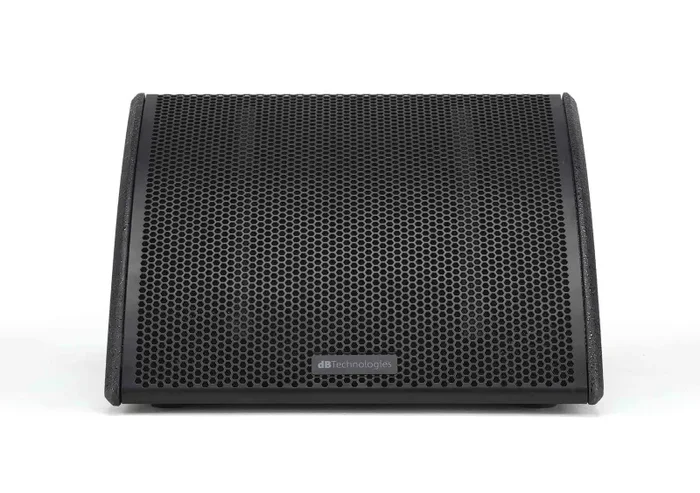

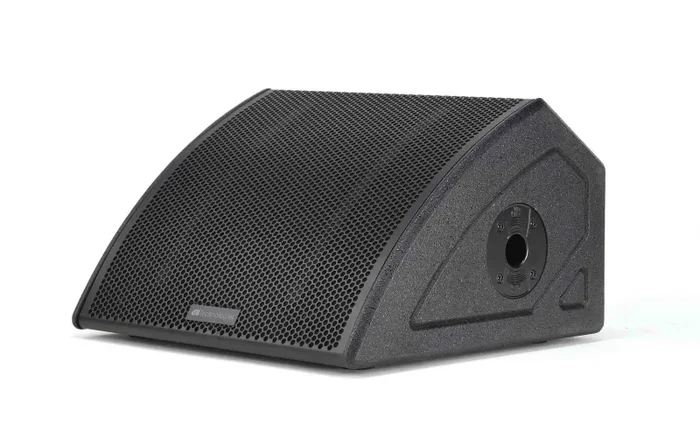

dB Technologies FMX 12, 12″ 2-Way Active Coaxial Stage Monitor – 1200W
The dB Technologies FMX is an active 2-way coaxial stage monitor series encompassing 3 models (10,12 and 15”) equipped with 400 RMS (for FMX 10) or 600 RMS (for FMX 12 and 15) Class D amplifiers. The wedge’s coaxial acoustic design, together with its custom horn design and its advanced DSP featuring linear phase FIR filters, provides an even, highly-intelligible sound. In facts, FMX’s horn design allows a very precise dispersion pattern (60° horizontal and 90° vertical) which can be easily reversed (90° horizontal and 60° vertical) by rotating the horn, adapting the wedge to the habits of the user. Moreover, 8 on-board presets optimize EQ for different needs making FMX a skilful yet easy-to-use tool for performers of every kind. All wedges of the series feature a peculiar front-rear grille design, a single handle integrated on the bottom side of the plywood cabinet and a 36mm pole mount on side panel which further enhance FMX versatility.
Product Specification:
Technical Data
Speaker Type 2-Way Active Coaxial Stage Monitor
Acoustical data
Frequency Response [- 10 dB] 52 – 19.000 Hz
Max SPL 128 dB
HF 1″, 1.3″ v.c.
Directivity 60°X90°
Horn Rotatable
LF 12″, 2″ v.c.
Amplifier
Amp Class Class D
Peak Power 1200 W
Processor
Controller DSP 28/56 bit
AD/DA Converter 24 bit/48 kHz
System Presets 8 presets
Limiter Peak, RMS, Thermal
Advanced DSP Function FIR Filters
Crossover Frequency 1740 Hz
Slope LF/HF 24 dB/oct
Mechanics
Housing Plywood
Housing Design Multifunctional
Handles 1 integrated on bottom side
Pole mount 36 mm
