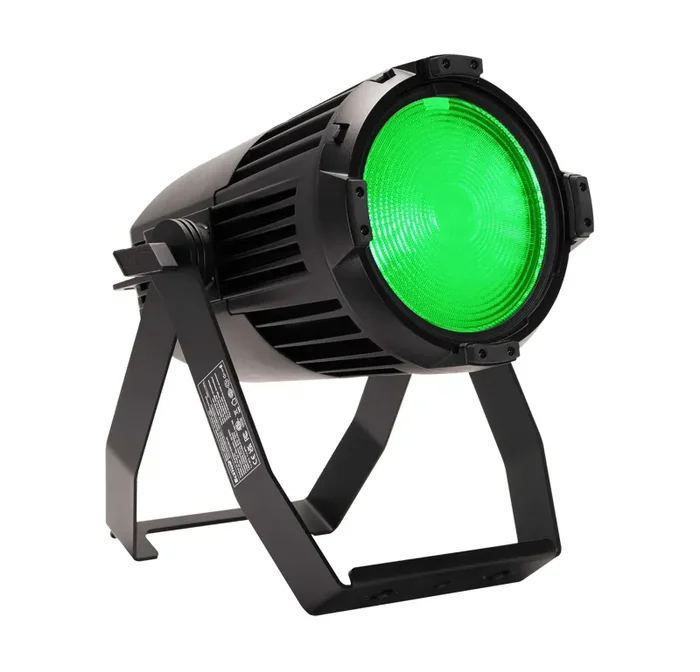

Elation KL PAR FC, Full Spectrum RGBMA LED Par – 280 Watt
The Elation KL PAR FC, Full Spectrum RGBMA LED Par – 280 Watt provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage. Offering powerful color intensity and a wide array of saturated and pastel colors from its efficient RGBMA engine, it is also optimized for the tunable white light requirements of Film and Television.
The KL PAR FC is an ideal key, fill, and area wash light source for theater, House of Worship, and any production requiring outstanding performance and color quality. It incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 11.000 field lumens, equivalent to existing 750W Tungsten PAR fixtures, and is delivered with multiple lens choices that are easy to replace in the field. With the new Colour Tune Technology software the fixture offers outstanding color rendering with a high CRI of 93 and TLCI of 95, fully variable 16bit CCT control, and remotely adjustable LED refresh frequency makes this unit the perfect choice for today’s fast-paced production environments. Rugged and portable, the fixture can be suspended using any standard clamp or floor mounted using the integrated stand. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units.
The KL PAR FC can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access and standalone operation using the included encoder and display, providing instant control of Intensity, Color Temperature, Green shift, and other important settings. The display and encoder are conveniently positioned at the backside of the fixture to ensure unobstructed access when mounted.
Product Specifications:
Source:
280W 6500K RGBMA LED Engine
50,000 Hour Average LED Life
May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometric Data:
11.000 Total Lumen Output
CRI 92
TLCI 95
Included Lenses:
VNSP (11°)
NSP (22°)
MFL (30°)
WFL (52°)
Effects:
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
Color:
High Brightness and High-Fidelity Output Options
RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K – 8500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book
Control / Connections:
8 DMX Channel Modes (1, 6, 11, 18, 19, 9, 14, 15)
Manual and DMX Controlled Dimmer and Color

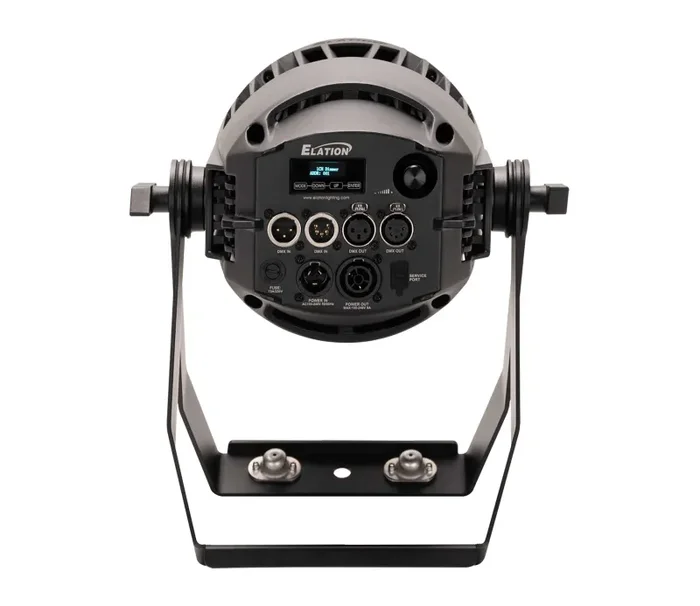

Single Rotary Dial
4 Button Control Panel, LED Display
RDM (Remote Device Management)
3/5pin DMX and IP65 Locking Power Cable In/Out
Size / Weight:
Length: 13.94” (354.0mm)
Width: 11.97” (304.0mm)
Vertical Height: 14.96” (380.0mm)
Weight: 15.98 lbs. (7.25kg)
Electrical / Thermal:
AC 100-240V – 50/60Hz
284W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
BTU/hrs. (+/- 10%) 891.76
Included Items:
7.5″ Gel Frame
4 Lenses (11°, 22°, 30°, 52°)
IP65 Locking Power Cable
Optional Items:
7.5″ Barndoors
XWFL (90°) Lens
Ovalizer Lens
Glass Lens
#8050000053 (Omega Bracket)
Approvals / Ratings: CE | cETLus | IP20 | FCC | UKCA
