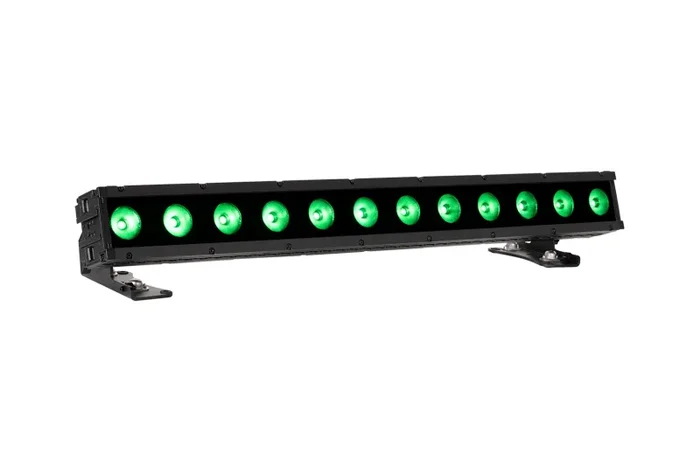

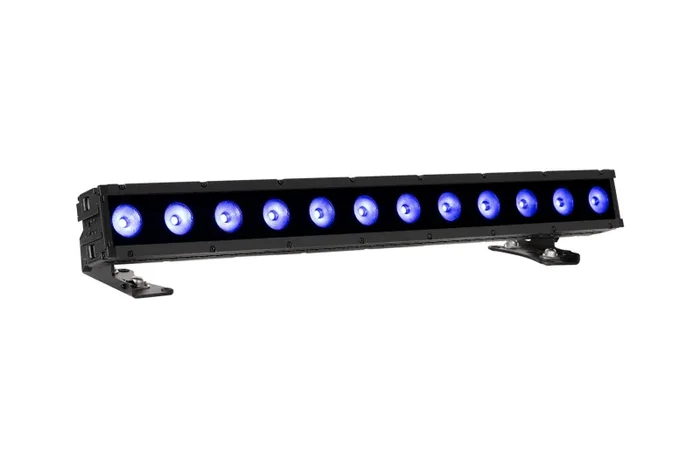

Elation SIX+ BAR L, 12×20-Watt RGBLA+UV LED Batten Fixture – IP65 Rated
The Elation SIX+ BAR L, 12x20W RGBLA+UV LED Batten Fixture – IP65 Rated represents an innovative line of creative LED batten solutions that harmonizes the latest in LED color technology with versatile design for greater artistic expression. An upgrade of Elation’s beloved SixBar 1000, the SIX+ BAR L raises the bar with more output, a broader color spectrum and an overall superior quality of light.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Equipped with 20W RGB+Lime+Amber+UV LEDs and boasting an impressive CRI of 93, the SIX+ BAR L offers a stunning array of colors, ensuring a beautifully homogenized wash of light with high-quality color reproduction. Its meticulously engineered optical system ensures even light distribution, and the proprietary RGBLA+UV engine delivers high-fidelity whites and intense primaries with no color fringing. Extra-large 50 mm lenses make it ideal for direct view applications and individual cell control opens up for a myriad of design possibilities.
The meter-long SIX+ BAR L houses 12 RGBLA+UV LEDs and packs a punch at over 7000 lumens. With fully variable color temperature adjustment (2400K – 8500K), CMY emulation, and a virtual gel library, designers have immediate access to a diverse LED color array, including beautifully mixed whites. A time-efficient SixBar emulation mode ensures perfect color matching and DMX control with existing SixBar fixtures. The integrated accessory slot accommodates the included frost filter, with optional ND filters and other optics available. The fixture also ships with an included glare shield for wall wash applications.
Designed for ultimate flexibility, the SIX+ BAR L’s innovative housing allows for end-to-end interconnection and includes integrated L track on three sides for flexible mounting and positioning. Trunnions designed for attachment to the L track can be fixed at multiple points to optimize positioning around objects or obstacles.
Ideal for a large variety of productions and easily integrated into installation applications, the SIX+ BAR L serves as a highly versatile wash light, up light, wall/Cyc wash, accent light, direct view pixel strip and more. Wrapped in a durable, fully IP65-rated housing, the fixture is suitable for any environment, indoors or outdoors, and the C4-M marine grade coating ensures protection against the harshest environments, even salty coastal air. Its fanless convection cooling guarantees silent operation, making it ideal for noise-sensitive environments.
Controllable via DMX/RDM, Art-Net, sACN, and KlingNet protocols, the SIX+ BAR L also features proprietary Aria x2 wireless device management for simplified system setup and maintenance.
Do more with LED batten lighting and set your creative spirit free with the SIX+ BAR L
Product Specifications:
Source:
(12) x 20W RGBLA+ UV LEDs
30,000 Hour Average LED Life
Photometric Data:
>7000 Total Lumen Output
CRI – 93
Beam Angle: 52°x 14°
Field Angle: 66°x 30°
Effects:
Full Pixel Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
Color:
RGBLA+ UV Color Array
CMY Emulation
Dim-to-Warm Fade
Variable CCT 2400K – 8500K
Virtual Gel Swatch Book
Control / Connections:
15 DMX Channel Modes (1ch, 3ch, 6ch, 9ch, 13ch, 16ch, 16ch, 22ch, 22ch, 34ch, 44ch, 58ch, 82ch, 154ch, 72ch)
5 Six Bar 1000 Emulation DMX Channel Modes (6ch, 7ch, 11ch, 13ch, 75ch)
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)
IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet in/Out (Art-Net, sACN, KlingNet)
IP65 Locking Power Cable In/Out
Size / Weight:
Length: 39.37″ (1000mm)
Width: 4.13” (105mm)
Vertical Height: 8.11” (206mm)
Weight: 27 lbs. / 12.25kg
Electrical / Thermal:
AC 100-240V – 50/60Hz
210W Max Power Consumption
Power Thru Capacity: @110V: 7 Units; @240V: 16 Units
5°F to 113°F (-15°C to 45°C)
BTU/hr. (+/- 10%) 716.1
Included Items:
Safety Cable
IP65 Locking Power Cable
Frost Filter
Glare Shield
Fixture Interconnect Splice
Optional Items:
BAR L NSP Lens (BLL021)
BAR L WFL Lens (BLL061)
BAR L XFL Lens (BLL101)
BAR L L140 Lens (BLL141)
BAR L L1060 Lens (BLL161)
# 8050000053 – Omega Bracket (Qty.2)
Fixture Interconnect Splice Package (FISP06)
L-Track to M10 Adapter,70mm (LTR001)
L-Track to M10 Adapter, 44.5mm (LTR008)
L Track C-Clamp & Adapter Assembly, 70mm (LTR100)
L Track C-Clamp & Adapter Assembly, 44.5mm (LTR112)
Interconnect Clamp Adapter (FICA01)
Approvals / Ratings: CE | cETLus(pend) | UL | IP65c| FCC | UKCA
