Description
Electro-Voice RE3-ND76-5H, Wireless Handheld Microphone System with ND76 Wireless Mic
The Electro-Voice RE3-ND76-5H, Wireless Handheld Microphone System with ND76 Wireless Mic for vocal performance and presentations. The ND 76’s crisp, clear, and balanced vocal presence is ideal for all-around voice applications. Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.
Product Specifications:
Wireless Technology: Digital UHF
Diversity: Antenna Diversity
Receiver Type: Tabletop
Number of Audio Channels: 1
Audio I/O:
1 x XLR 3-Pin Male Balanced Line Output
1 x 1/4″” TS Male Unbalanced Line Output”
Power Requirements: AC/DC Power Adapter
Number of RF Channel Frequencies: 400
Diversity: Antenna Diversity
RF Frequency Band: 653 to 663 MHz
RF Bandwidth: Up to 10 MHz
Modulation: Wideband FM

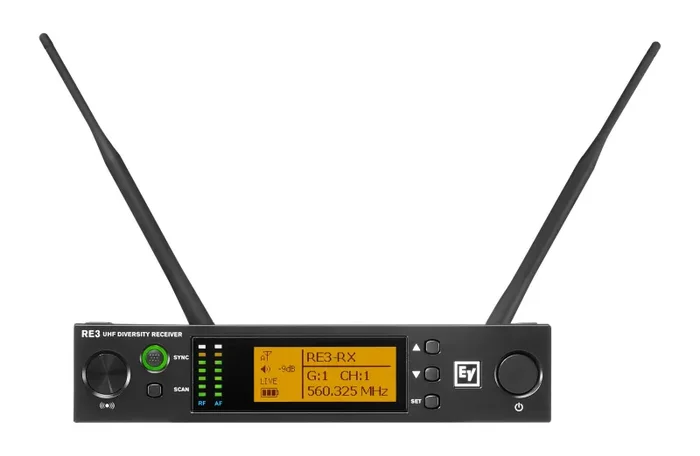

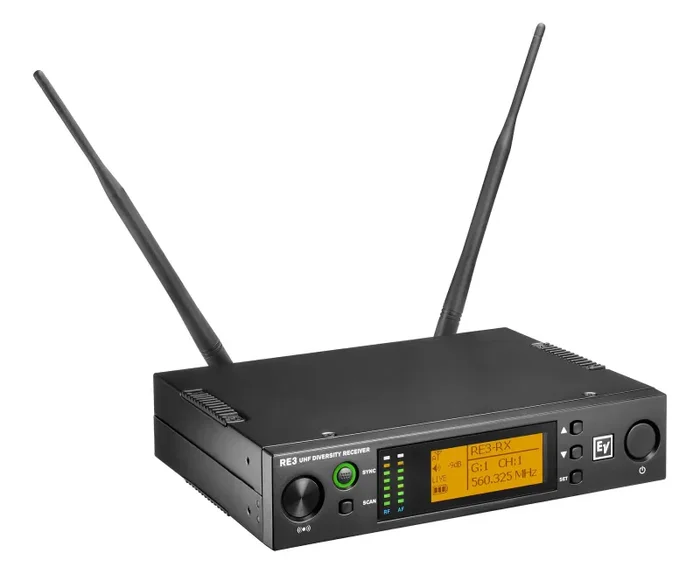

Receiver:
Receiver Type: Tabletop
Mounting Options: Rackmount (with Included Hardware)
Rackmount Size: 1 RU (1/2 Rack)
Antenna: 2 x 1/2 Wave External, Detachable (Rear-Mount)
Antenna Bias Voltage: 12 to 15 VDC
Number of Audio Channels: 1
Frequency Response: 51 Hz to 16 kHz (Dependent on Mic)
Approximate RF Sensitivity: 81 dBm
RF Output Power: Up to 20 mW (Max)
Power Requirements: AC/DC Power Adapter
AC/DC Power Adapter: 12 to 15 VDC (Included)
Display & Indicators: Backlit LCD (Battery Status, Channel, Diversity, Frequency, Group, Mute, Power)
Housing: Metal
Shipping Dimensions: 9 x 3 x 7.1″
Shipping Weight: 3.28 lbs
