Description

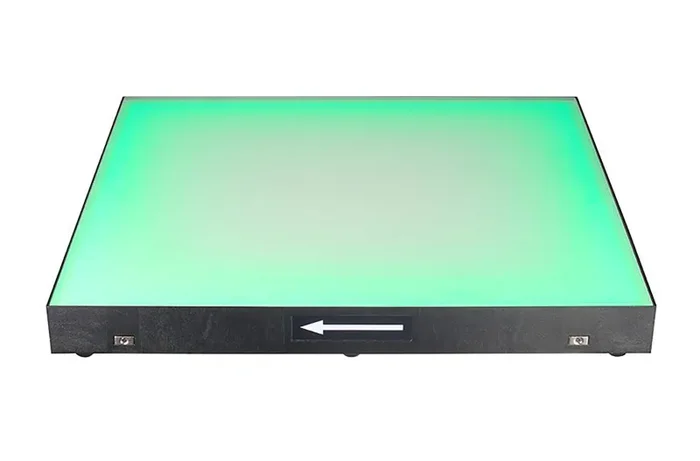

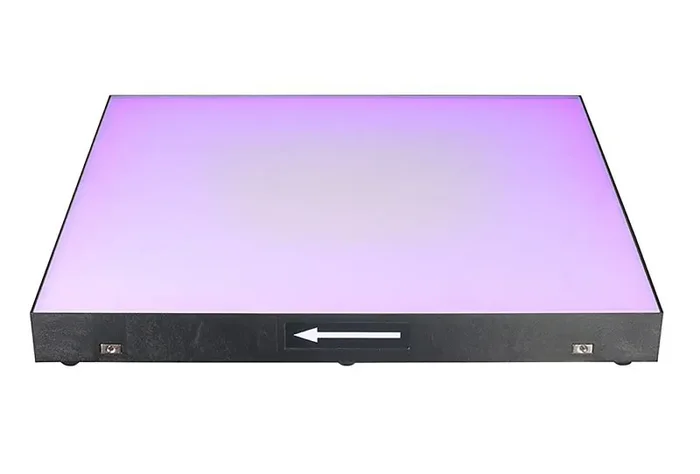

Eliminator MDF3, 3-in-1 RGB Color Mixing LED Dance Floor Panel
The Eliminator MDF3 is a single, robust, lightweight, and modular LED dance floor panel illuminated by an arrangement of vibrant 3-in-1 RGB color mixing LEDs that is 600mm x 600mm (23.62” x 23.62”) in size. This robust and lightweight panel features an arrangement of 3-in-1 RGB LEDs that illuminate its opaque tempered glass surface. These LEDs combine red, green, and blue to create a wide range of colors and effects. The MDF3 integrates with other Eliminator MDF3 panels using a system of gold-plated copper strips and springs for reliable electrical connections and a seamless overall look. This allows you to create dance floors in various sizes and configurations.
Product Specifications
Light Source: RGB 3-IN-1 LED
Input Voltage: DC 24V
Max Power Consumption: 15W
Input Signal: DMX512 (3-Pin XLR)
DMX Channel Mode: 3, 5, 7, & 10 Channel Mode
Visual Angle: 160°
Brightness: High Brightness
Surface Material: Tempered Glass
Base Material: ABS
Bearing Weight: 61.5 lbs./ft2 (300 kgs/m2)
Operating and Storage Temperatures: -4°F min. ~ 113°F max. (-20°C~45°C)
Single panel Dimensions (LxWxH): 23.62” x 23.62” x 2.76” / 600x600x70mm
Single Panel Weight: 26.57 lbs./ 12.05 Kgs
