Description

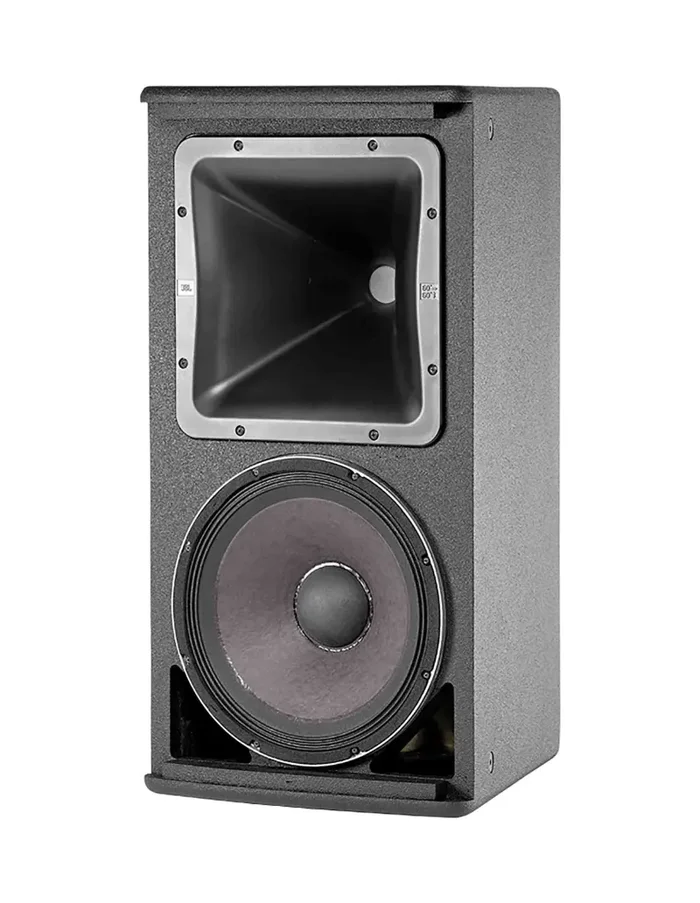

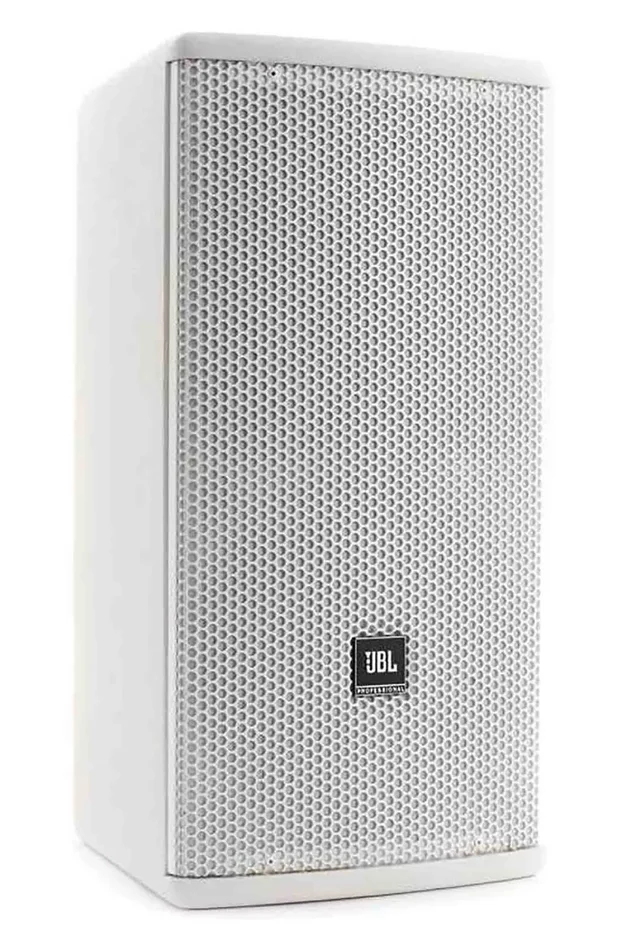

JBL AM5212/26, 2-Way Loudspeaker System with 1 x 12″ LF
The JBL AM5212/26 Passive 2-Way 12″ Loudspeaker System is a versatile, medium-power speaker well suited for professional installations such as performing arts facilities, theatureal sound design, auditoriums, houses of worship, live music venues, night clubs, sports facilities, and theme parks. The AM5212/26 is comprised of the JBL Differential Drive, dual-voice coil and dual-magnetic gap 262H-1 (12″) low-frequency driver, and 2408H-1 high-frequency 1.5″ exit, 1.5″ voice-coil compression driver. The large format PT Progressive Transition waveguide provides a 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability. The AM5212/26 will perform as either a bi-amped or passive cabinet, at the flick of a switch.
Product Specifications:
Frequency Range (-10dB): 37 Hz – 20 kHz
Frequency Response (±3 dB): 43 Hz – 18 kHz
Coverage Pattern: /64: 60° x 40°/66: 60° x 60°/95: 90° x 50°/00: 100° x 100°/26: 120° x 60°
Crossover Modes: Bi-amp/Passive switchable
Passive Crossover Frequency: 1.5 kHz
System Power Rating: Passive mode: 300 W (1200 W peak), 100 hrs
Maximum SPL (1m): Bi-amp mode: LF: 122 dB HF: 131 dB
System Sensitivity (1w @ 1m): Passive mode: 96 dB SPL
LF Driver: 1 x JBL 262H-1 300 mm (12 in ) driver with 50.8 mm (2 in) dual voice coil
Nominal Impedance: 8 ohms
Sensitivity (1W @ 1m, within operational band): 97 dB SPL
HF Driver: JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
Sensitivity: 113 dB SPL
Waveguide: PT-H126HF-1
Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish: Black DuraFlex finish.
Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Environmental: Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D in vertical orientation): 713 x 371 x 458 mm(28.06 x 14.6 x 18.1 in)
Net Weight (each): 20.2 kg (45 lb)
Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-3
System Power Rating: Passive mode: 300 W (1200 W peak), 100 hrs (IEC rated)
Nominal LF Driver Impedance: 8 ohms
Nominal HF Driver Impedance: 8 ohms
