Description

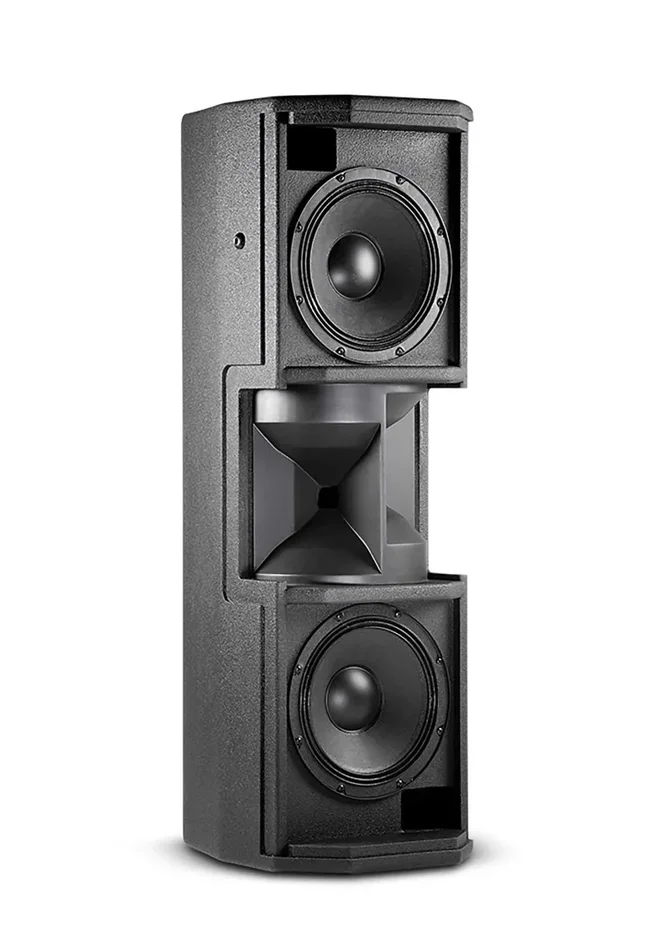

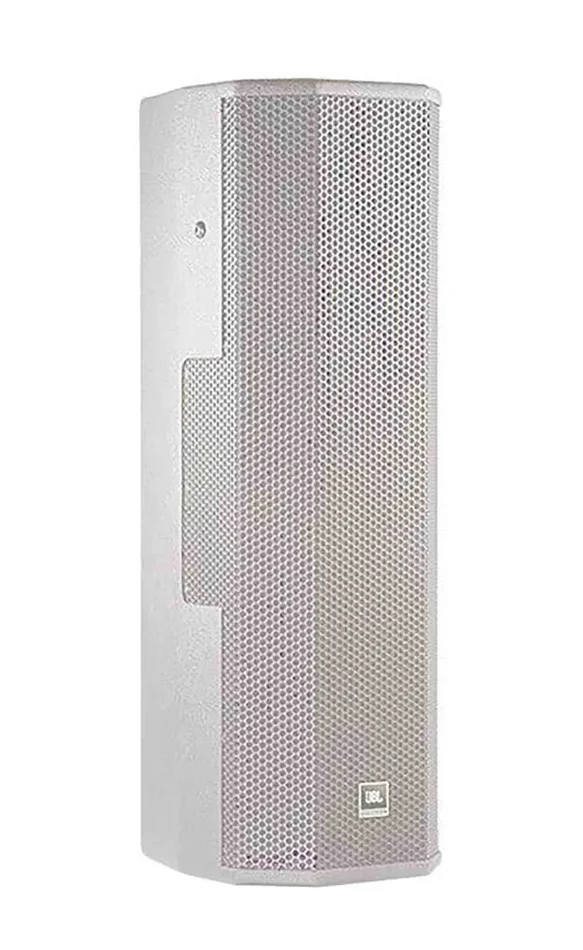

JBL CWT128, Dual 8″ 2-Way Loudspeaker System featuring CWT Crossfired Waveguide Technology
The JBL Crossfired Waveguide Technology CWT128 is a compact full-range 2-way system designed to provide extremely wide-angle coverage with maximum bandwidth and SPL in a single system package. The unique wide coverage pattern horn is designed to provide seamless coverage to 160-degrees horizontally. CWT128’s small footprint makes the system ideal for nearly all architecturally sensitive environments, taking up about a third of the footprint of two speakers splayed side by side.
Product Specifications:
System Format: Extremely Wide Angle Coverage Dual 8″ 2-Way Loudspeaker System
Frequency Range (-10dB): 71 Hz – 20 kHz
Frequency Response (±3 dB): 96 Hz – 19 kHz
Coverage Pattern: 160° x 60°
Maximum SPL (1m): 129 dB
System Nominal Impedance: 8 Ohms
Long-Term System Power Rating: 450W (1800W Peak)
System Power Rating: 850W/1700W/3400W Continuous/Program/Peak
Crossover: 1.5 kHz
LF Driver: 2 x JBL 228J, 205 mm (8 in) SFG driver with 64 mm (2.5 in) edge wound voice coil
HF Driver: 2 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
High-Frequency Waveguide: Crossfired Waveguide
Finish: Black DuraFlex finish.
Dimensions (w x h x d): 811.28 x 259.59 x 300.74 mm (31.94 x 10.22 x 11.84 in)
Weight: 18.6 kg (40.9 lb)
Crossover Modes: Passive
System Sensitivity (1w @ 1m): 94 dB SPL
Nominal LF Driver Impedance: 8 Ohms
Transformer Taps: 70V: 110W, 55W, 28W 100V: 110W & 55W
Enclosure: 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Environmental: Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
