Description

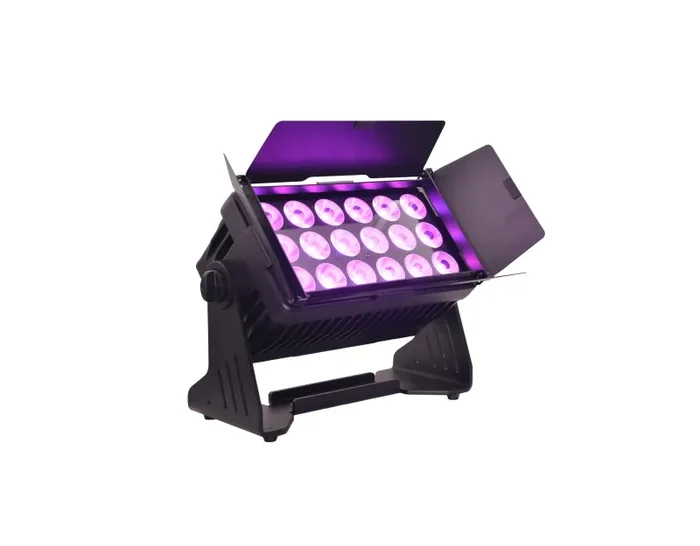

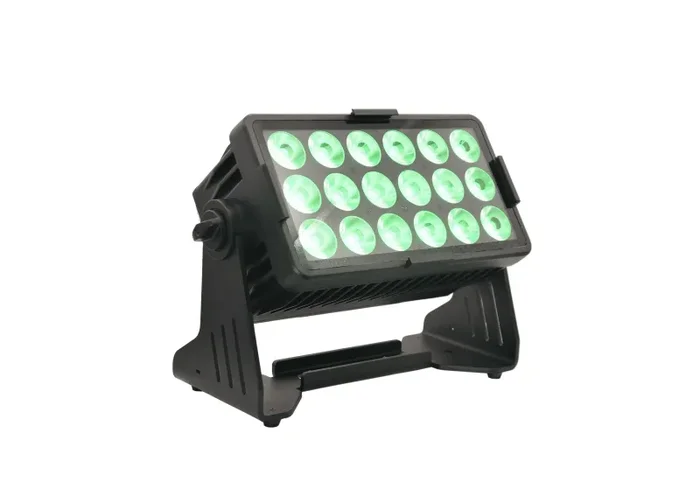

JMAZ Pro JP2007, Electro Panel W18 with 18 x 12-Watt RGBL LEDs
The JMAZ Professional Electro W18 is a high-performance 215W RGB+L LED outdoor panel with 11-hour runtime (single color) and 3.5-hour runtime at full brightness. It recharges in just 2.5 hours and features adjustable CTO (2500K-5600K), a 20° beam angle (40° with diffuser), and an IP65 rating for durability. With 5 DMX modes, built-in color presets, DMX512, CRMX, and Wireless DMX compatibility, it’s ideal for professional lighting setups.
Product Specifications:
Light Source:
18 x 12W RGBL LEDs
LED Life Expectancy: 50,000 Hrs.
Color System:
RGBL Color Mixing 32 bit
Color Temperature Range: 2,500K -5,600k
Fading/Jumping Macros
Body:
Die-Cast Aluminum and Steel Structure
Exterior Finish: Black
Electronics:
Linear LED Dimmer: 0-100% Smooth
Linear CTO: We NEED
Strobe Shutter: 0-25H
Dimming Modes: 4 Different Ones
Electrical:
Input Voltage: 100 V – 260 V AC, 50 -60 Hz
Power Consumption: 216W
Included 45ft Range, IR Remote
PWM: 1.5KHz
Power Linking for connecting fixture in daisy-chain
Up to 8 units @110V with a 20A circuit
Up to 14 units @208V with a 20A circuit
Up to 17 units @230V with a 20A circuit
Battery Voltage: 25.9V,
Battery Capacity: 12,5000 mAh, 323.8 Wh/hour
Charger: 36V, 5.5A
Battery Type: Lithium Ion
Rechargeable: Yes
Run Time: Full On: 3 hr 40 min, Single: 11 hours
Charging Time: 2.5 hrs
Battery Life Selectable: 50%, 60%, 70%, 80%, 90%, 100%
Optics:
Install Optic: 20 Degree
Filter 1 Beam Angle: 40 Degree
Filter 2 Beam Angle: 60 x 10 Degree
Filter 3 Beam Angle: 80 Degree
Dynamic Effect:
Tilt Range: 0-360 Degree
64 Preset Color Macros
Stand Alone Color Mixing: Yes
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0-25 Hz
Dim Mode: 4
Built-In Automated Programs: Yes
Emergency Mode: Same W8
Control:
Control Protocol: DMX, RDM
Wireless DMX: Lumen Radio (CRMX) with RDM
Personalities: 3/4/6/8/11 CH DMX Modes
Setting and addressing: OLED Graphical Display, RDM ANSI E2.20, Standalone Mode
Physical:
IP Rating: 65
Cooling: Fanless
Power Connection: US Edison (UL Listed) plug to Seetronic Powercon IP65 True1
Power Input: Seetronic Powercon IP65 True1
Power Output: Seetronic Powercon IP65 True1
Data Connectors: Seetronic 5pin XLR
Cable Length: Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)
Dimensions: 16.2” x 7.3” x 10.6”
Weight: 23.2 lbs.
Certification / Qualifications:
RoHS, CE, FCC
IP Rating: IP 65
Operating Temperature: 40 ° C (104 °F)
Minimum Temperature: – 10 ° C (14 ° F)
Maximum Temperature: 60 ° C (140 ° F)
