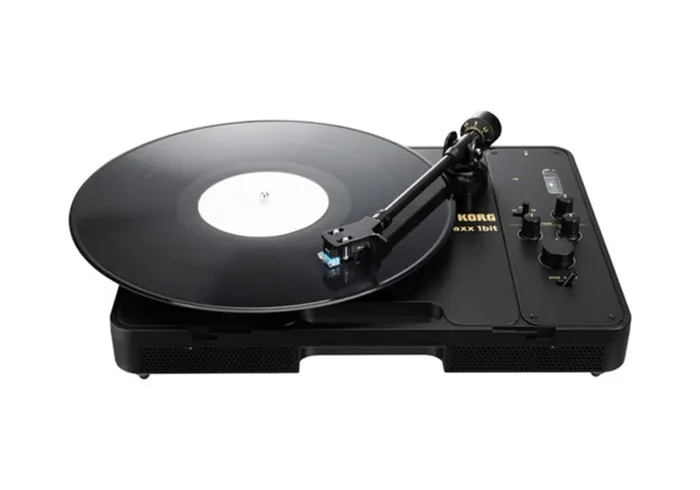

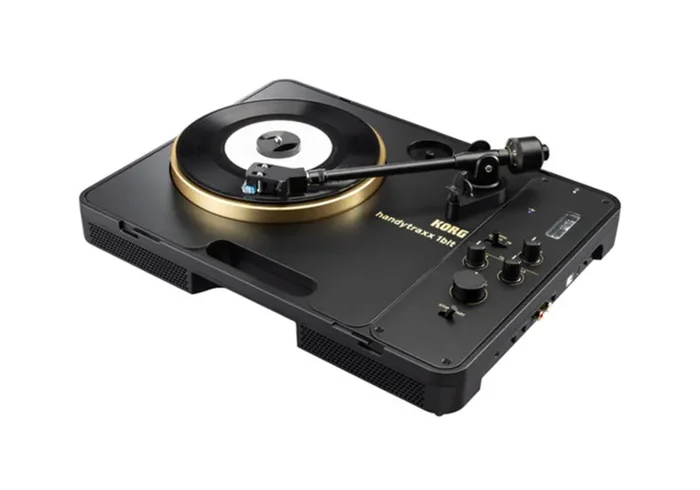

Korg Handytraxx 1 BIT Portable Record Player with Nutube EQ and High-Definition Recording
The KORG Handytraxx 1 BIT Experience your analog records at their best while archiving them as high-resolution digital data. The handytraxx 1bit is the flagship model in the handytraxx series, capturing vinyl in stunning 5.6 MHz, 1-bit (DSD) format. Whether you’re digitizing a priceless collection or enjoying casual playback, this portable turntable ensures superior sound quality anywhere, anytime.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Seamless Digital Conversion:
Equipped with AudioGate 4, Korg’s high-resolution audio software, the handytraxx 1bit connects via USB for effortless recording and playback. It supports 5.6 MHz and 2.8 MHz DSD, as well as PCM formats up to 192 kHz/24-bit. Simply transfer digital files to your Mac/PC for secure archiving or enjoy high-quality playback on a portable device. AudioGate 4 is available as a free download from Korg’s website, allowing instant authentication when connected.
Portable Design Meets Premium Sound Quality:
Designed for on-the-go use without sacrificing performance, the handytraxx 1bit features a die-cast aluminum platter for precise rotation and pitch monitoring. The universal tonearm with an interchangeable headshell allows cartridge customization, while the counterweight ensures accurate needle pressure adjustment. The pre-installed JICO J44A 7 MM cartridge delivers dynamic sound, complemented by built-in stereo speakers and dual tone controls for fine-tuning bass and treble.
Revolutionary Phono Equalizer with Nutube Technology:
Featuring a Nutube phono equalizer, the handytraxx 1bit enhances vinyl playback with the warmth and depth of vacuum tube technology. An adjustable TUBE knob lets you refine tonal richness to match your preference. With both a line output for standard stereo integration and a dedicated phono output for audiophile setups, it provides versatile connectivity for any listening environment.
Rediscover the Magic of Vinyl:
Vinyl offers a unique, immersive experience beyond just music. The handytraxx 1bit enhances this by integrating everything you need into a single, portable device—no extra amplifiers or speakers required. With the resurgence of vinyl through reissues and remastered classics, this all-in-one player is perfect for both seasoned collectors and newcomers.
High-Resolution Sound, Anywhere You Go:
Supporting DSD, FLAC, WAV, and MP3 conversion, the handytraxx 1bit delivers high-fidelity sound on the go. Despite its advanced capabilities, it remains highly portable at just 3kg/6.6lbs, with dimensions comparable to an A3 sheet. A protective dust cover and built-in stereo speakers make it ideal for both home and travel.
Product Specifications:
Drive System: Belt drive (CPU-controlled rotation compensation)
Motor: DC Servo Motor
Speeds: 33-1/3, 45, 78 RPM
Platter: Aluminum Die-Cast
Wow & Flutter: < 0.15% (WTD) at 3 kHz
Signal-to-Noise Ratio: > 60 dB (DIN-B)
Cartridge Type: MM Type Stereo Cartridge (JICO J44A 7)
Needle Pressure: 1.5g – 3.0g
Effective Tonearm Length: 190 mm
Audio Output
Phono Output: 420~750 mV (TUBE VR MIN)
Line Output: Max +14.75 dBu (THD 1%)
Headphone Output: Max 70 mW (32Ω, THD 1%)
Speaker Output: Max 2.5W x2 (4Ω, THD 1%)
Phono Preamp & Tone Control
Gain: 38 dB
Equalizer Characteristics: RIAA
Bass Control: 130 Hz, ±8 dB
Treble Control: 5.5 kHz, ±8 dB
Tube Control Gain: 0 ~ 6 dB
USB Audio & Digital Conversion
USB Audio Output:
DSD: 2.8 MHz / 5.6 MHz, 1-bit
PCM: 44.1 kHz – 192 kHz, 16-bit / 24-bit
USB Ports:
1 x USB-B 2.0 (Audio Output)
1 x USB-C (Power Only)
Power & Battery
Power Supply: AC Adapter or 6x AA Batteries
Battery Life: Approx. 11 hours (Speaker ON, volume at center, alkaline batteries)
Power Consumption: 2.35 W
Dimensions & Weight
Size (L x W x H): 13.9 x 18.4 x 9.09 inches
Weight: 8.71 lbs
