Description

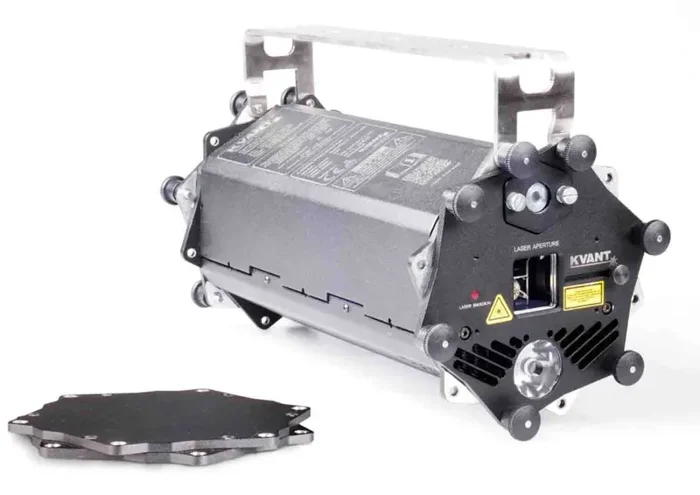

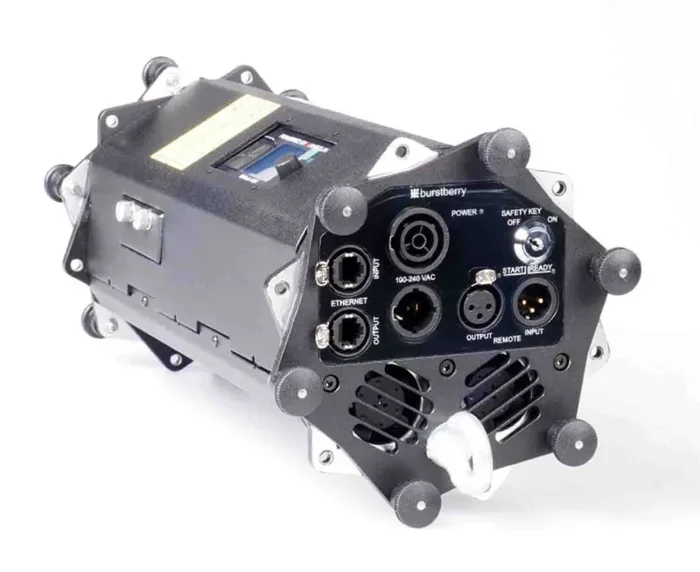

Kvant Lasers Burst Berry Unique Modular Laser Display System
The Kvant Lasers Burst Berry Unique Modular Laser Display System is Compact in size, being a fully equipped 2W full-color RGB laser display system with build-in burst effect and 3W white LED blinder – that’s Kvant Burst berry. With our Burst berry, you can now easily create all the super-cool laser effects that seemed impossible to accomplish before. Controlling a complex setup made of many Burst berries is now so simple thanks to the control via Art Net protocol.
Modular Laser/Lighting Fixture
This system is designed to work as a multi-head laser projector and can be assembled into virtually any geometrical formation – offering phenomenal graphical performance.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
Source | Type: Semiconductor laser diode | Full-color RGB laser projector/Lighting fixture
Suitability: Indoor/outdoor laser displays [atmospheric, abstract, text, animations]
System Control: FB4-STD [Ethernet, Art Net | PC, Lighting Console or Auto play]
Compliant With: EN 60825-1 [tested by TÜV SÜD], FDA
Guaranteed Opt. Output [Mw]: 2000
R | G | B [Mw]: 340 | 700 | 1200 [see note A below]
Wavelengths [Nm, ±5nm]: 637 | 520 | 445
Beam Size [Mm]: 5.2 x 4.5
Beam Divergence [Mrad]: 0.58 [full angle, averaged value, see note B below]
Modulation [Khz] | Type: 100 | analogue
X-Y Scanners: ScannerMAX 506 Compact | 28 Kpps @ 8°, max. 60°
Power Requirements [V] | Input: 100-230/50-60Hz | Neutrik powerCON TRUE1
Max. Power Consumption [VA]: 340
Operation Temperature [°C]: 10-35
Exterior Dimensions (L X W X H): 6.73 X 6.73 X 14.13″
Weight: 8.37 Lb
