LD System LDS-MON15AG3W, 15″ Powered Coaxial Stage Monitor – White
The LD System MON 15 A G3 W is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.
A maximum sound pressure level of 129 dB and superior bass reproduction make the MON 15 A G3 W the best choice for loud band stages, as a drum fill or for stand-alone use as a compact front PA without an additional subwoofer. For a 15″ stage monitor, it is unusually compact and elegant, so despite its impressive performance data, it blends harmoniously into the stage set.

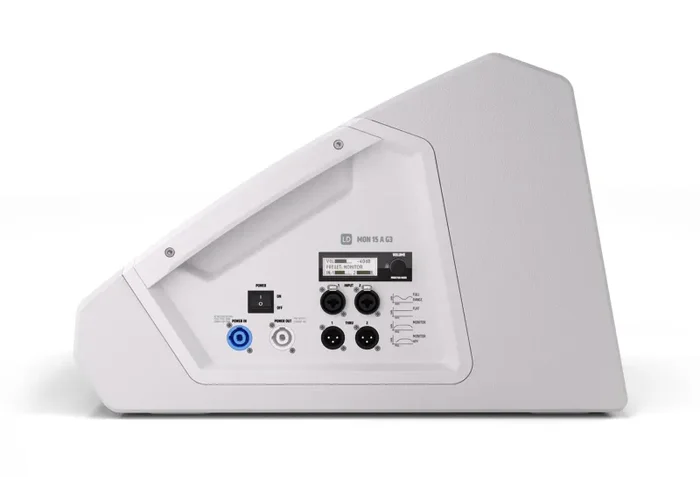

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
Product Type: Stage Monitors
Type: Powered
Color: White
System Output (RMS): 300 W
System Output (Peak): 1200 W
Max. SPL Average (Sine Burst): 122 Db (100 Hz – 12 Khz, Fullspace @1m, 10% THD)
Max. SPL Peak (Sine Burst): 129 Db (Fullspace @1m, 10% THD)
Frequency Response (-3 Db): 58 – 18000 Hz
Frequency Response (-10 Db): 48 – 20000 Hz
Crossover Frequency: 1300 Hz
Monitor Angle: 33°
Dispersion (H X V): 50° X 90°
Width: 505 Mm
Depth: 517 Mm
Height: 340 Mm
Weight: 23,15 Kg
Low/Mid Woofer Dimensions: 15 “
Woofer Dimensions (Mm): 381 Mm
Woofer Magnet: Ferrite
Woofer Brand: Custom-Made
Woofer Type: Coaxial Loudspeaker
Woofer Voice Coil: 3 “
Woofer Voice Coil (Mm): 75 Mm
Cabinet Construction: Bass Reflex
Horn: CD Horn
Tweeter Dimensions: 1 “
Tweeter Dimensions (Mm): 25.4 Mm
Tweeter Magnet: Ferrite
Tweeter Brand: Custom-Made
Tweeter Voice Coil: 1.75 “
Tweeter Voice Coil (Mm): 44.45 Mm
Amplifier: Class D
Fuse: T4AL 250 V
Controls: On / Off Switch, Rotary/Push Encoder
Indicators: LC Display
Power Supply: SMPS
Operating Voltage: 100 V AC – 240 V AC, 50 – 60 Hz
Power Consumption: 150 W
Power In / Out: Powercon Compatible
Line Inputs: 2
Line Input Connectors: 6.3 Mm Jack, XLR – Combo
Line Thru: 2
Line Through Connector: XLR
