Description
Palmer PAN 03 PASS 19″ Passive Four-Channel DI Box

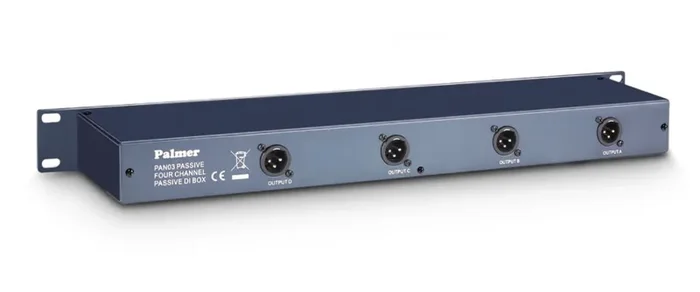

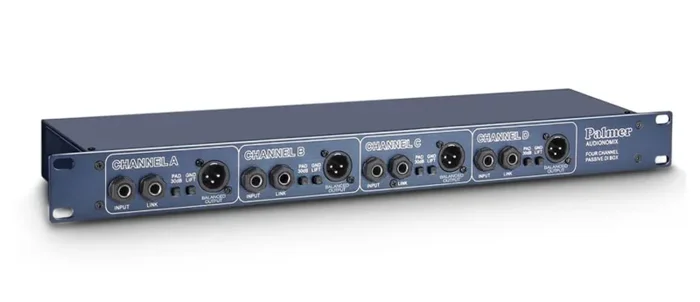

The Palmer Passive 4-channel DI BOX in a 19″ housing. Each channel has a jack input with a parallel output for looping the signal through. An attenuation switch (-30 dB) permits the connection of a line or speaker signal at the user’s choice. The specifications are identical to those of the PAN 01. All connections and switches are on the 1 U front panel; the XLR output is additionally present as a parallel socket on the rear panel.
Product Specification:
Product Type: DI Boxes
Type: Passive
Channels:4
Inputs: 4
Input Connectors: 6.3 mm jack
Max. Input Level: + 54 dBu
Input Impedance: (@ 60 Hz) 68k Ohm(s)
Input Pad: 0 / -30 dB
Outputs: 4 (+ 4 parallel outs)
THRU Outputs/Channel: 1
Output Connectors: 6.3 mm jack, XLR
Max. Output Level: +4 dBu
Output Impedance: 600 Ohm(s)
Frequency Response: 10 – 40000 Hz
Transformer Balanced: Yes
RatioL 10 : 1
Controls: attenuation, ground lift
Cabinet Material: sheet steel
Cabinet Surface: Powder coated
Width: 480 mm
Width: 19 “
Depth: 90 mm
Height: 45 mm
Height: 1 U
Weight: 1,43 kg
