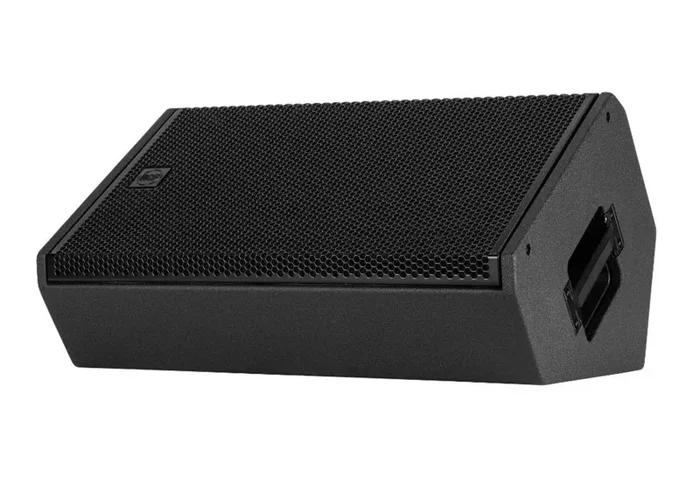

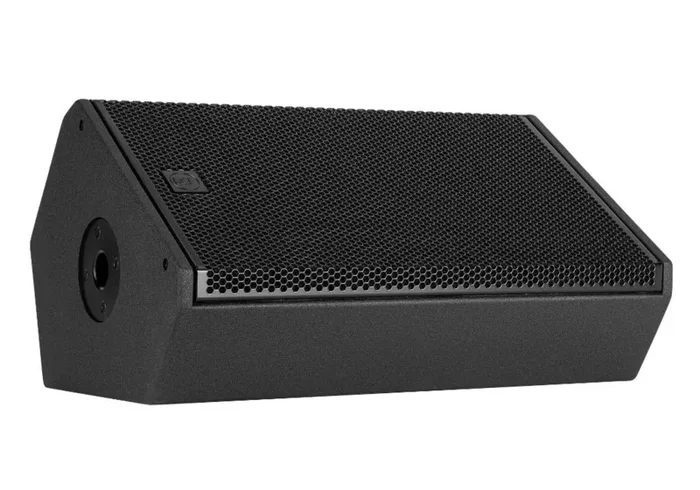

RCF NX SMA Series Professional Active Stage Monitors – 2100W
The RCF NX SMA Series is a high-performance active stage monitor lineup designed for sound providers, musicians, bands, and DJs. Available in two sizes NX 912-SMA (12” woofer) and NX 915-SMA (15” woofer) these monitors deliver exceptional clarity, deep bass response, and robust reliability in a compact, tour-ready design. Featuring RCF’s FiRPHASE and Bass Motion Control DSP processing, these monitors ensure precise sound reproduction with zero-degree phase technology. The 2,100W Class-D bi-amplification system provides high efficiency and powerful output without requiring a cooling fan. The NX SMA Series is engineered for both horizontal and vertical deployment, making it ideal for stage monitoring, standalone PA applications, or as satellite speakers when paired with a subwoofer.
Product Specifications:
NX 912-SMA:
Max SPL: 130 dB
Frequency Response: 50 Hz – 20 kHz
Coverage: 100° x 70°
Woofer: 12” with 2.5” voice coil
Compression Driver: 1.75” voice coil
Amplifier Power: 2,100W Peak (700W HF + 1,400W LF)
Crossover Frequency: 1600 Hz
Input Connectors: Combo XLR/Jack
Output Connectors: XLR
Cooling: Convection
Cabinet Material: Plywood
Handles: 1 on side, 1 on top
Pole Mount: 35 mm insert
Weight: 20 kg / 44.09 lbs
Dimensions (H x W x D): 320 x 620 x 394 mm
Package Weight: 23 kg / 50.71 lbs
NX 915-SMA:
Max SPL: 131 dB
Frequency Response: 45 Hz – 20 kHz
Coverage: 100° x 70°
Woofer: 15” with 2.5” voice coil
Compression Driver: 1.75” voice coil
Amplifier Power: 2,100W Peak (700W HF + 1,400W LF)
Crossover Frequency: 1600 Hz
Input Connectors: Combo XLR/Jack
Output Connectors: XLR
Cooling: Convection
Cabinet Material: Plywood
Handles: 1 on side, 1 on top
Pole Mount: 35 mm insert
Weight: 23.8 kg / 52.47 lbs
Dimensions (H x W x D): 357.3 x 705 x 456.6 mm
Package Weight: 27.5 kg / 60.63 lbs
