Description

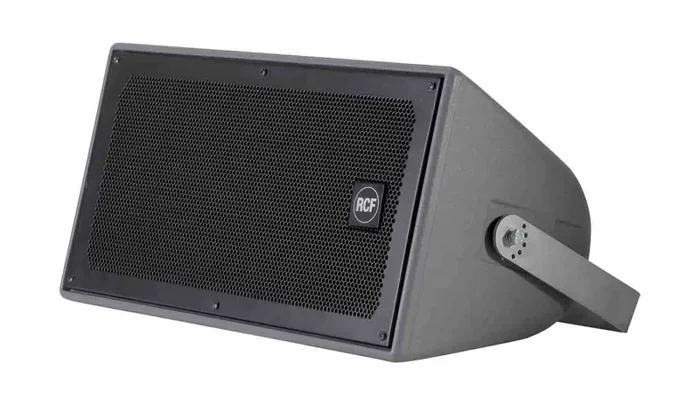

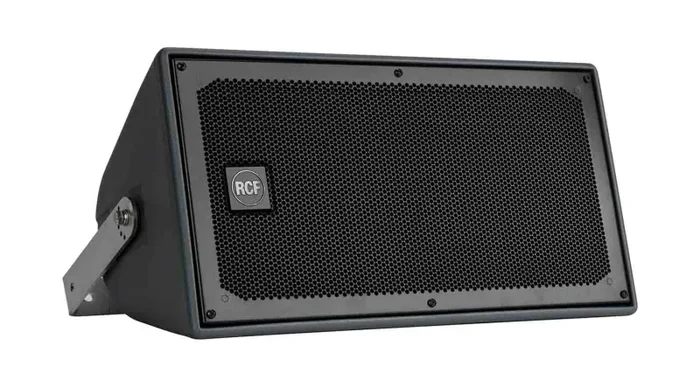

RCF P3108, 8-Inch 300-Watt Weatherproof 2-Way Speaker System
The RCF P3108, 8-Inch 300-Watt Weatherproof 2-Way Speaker System is a weatherproof, full-range, wide-dispersion, coaxial two-way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications.
The high-frequency section is a constant directivity CMD horn loaded with a 1″ RCF precision compression driver with a 1.5″ diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is an 8″ woofer with a 2.5″ voice coil. The cabinet is a single piece rotational molded in medium density polyethylene and is fully UV protected. The cabinet is equipped with 4 x M 8 brass inserts, a stainless-steel U-Bracket. The front logo is in aluminum and rotatable. The grille is in custom perforated aluminum with open-cell fibers and water-repellent woven fabric backing. The system meets the requirements of IP55 code.
Product Specifications
| Specification | Value |
|---|---|
| Frequency Response | 80 Hz-20 kHz |
| Maximum SPL | @ 1 m: 125 dB |
| Coverage Angle | Horizontal: 90°, Vertical: 60° |
| Directivity | Index, Q: 11 |
| Sensitivity | 94 dB |
| Impedance | 8 Ω |
| Power Handling | 300 W |
| Peak Power Output | 1200 W |
| Protection | Dynamic |
| Crossover Frequencies | 1800 Hz |
| HF Driver | 1.0″ (25.4 mm) HF driver, 2.5″ (63.5 mm) voice coil |
| Woofer | 8.0″ (203.2 mm) woofer, 2.5″ (63.5 mm) voice coil |
| Dimensions | 10.47 x 19.41 x 9.84″ (266 x 493 x 250 mm) |
| Weight | 22 lbs (10 kg) |
| Package Weight | 25.25 lbs |
| Box Dimensions (LxWxH) | 21 x 11.2 x 11″ |
