Description

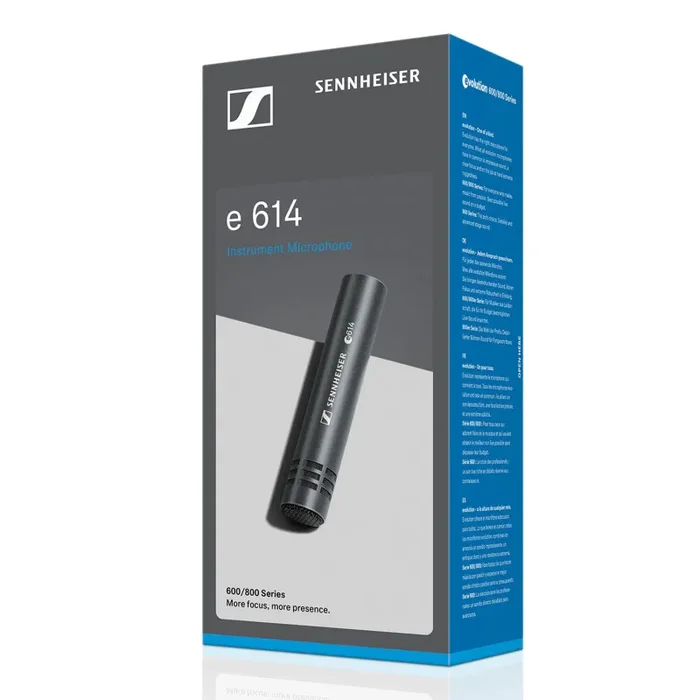

Sennheiser E 614 Evolution 600 Series Supercardioid Instrument Microphone
The Sennheiser E 614 Evolution 600 Series Supercardioid Instrument Microphone is designed for demanding instrument recordings and performances that require extended frequency response, high SPL handling, fast transient response and compact size. While drum set overhead miking was the first design priority, the e614 also works exceptionally well on percussion setups as well, fitting comfortably into tight setups. The e 614 can handle high SPLs and features medium sensitivity, which ensures reduced bleed from other instruments on stage. Because of its excellent acoustic properties, this mic is also ideal for home recording.
Product Specifications:
Dimensions: Ø 20mm, L = 100mm
Connector: XLR-3
Frequency Response: 40 – 20000 Hz
Transducer Principle: pre-polarised condenser microphone
Weight: w/o cable: 73 g
Pick-Up Pattern: super-cardioid
Sensitivity in Free Field, No Load (1khz): 3 mV/Pa = – 50dB (0 dB = 1 V/Pa)
Nominal Impedance: 50 Ω
Min. Terminating Impedance: 1000 Ω
Phantom Powering: 12 – 52 V / 3 mA
Equivalent Noise Level: 24 dB(A)
Equivalent Noise Level Weighted as Per CCIR: 35 dB
Maximum Sound Pressure Level (Passive): 139 dB/SPL
Shipping Weight: 0.765 lb
Shipping Dimensions (LxWxH): 10 x 10 x 3″
