Description
Shure 712L AL-V Ecosystem Speaker Package Including 2 MXA710-2FT Linear Microphone, 1 IMX-RM8-SUB5, 4 MXN5W-C Ceiling Loudspeaker and 4 Tile Bridge
The Shure 712L AL-V Ecosystem Speaker Package offers a compact yet powerful audio solution for modern professional spaces. Featuring two versatile Shure MXA710AL -2FT Linear Array Microphone, this system ensures precise voice capture with a sleek, space-saving design ideal for walls, ceilings, or tabletops. The IMX-RM8-SUB5 provides a 5-year IntelliMix Room subscription with advanced DSP processing, delivering echo-free, noise-free audio across 8 channels. Complete with four MXN5W-C Ceiling Loudspeakers and tile bridges, this package provides outstanding sound quality and effortless installation.
Perfect for conference rooms, classrooms, and event spaces, this bundle offers easy integration with PoE and Dante connectivity, ensuring secure and reliable audio performance. Experience the excellence of Shure’s audio ecosystem in a streamlined, scalable package tailored for professional use.
This Speaker Package Includes,
- 2 Shure MXA710AL-2FT, 2 Feet Microflex Advance Linear Array Microphone – Aluminum
- 1 Shure IMX-RM8-SUB5, 8-Channel IntelliMix Room Subscription – 5 Years
- 4 Shure MXN5W-C Networked Ceiling Loudspeaker
- 4 Shure A-MXN5-TB Tile Bridge for MXN5-C Microflex

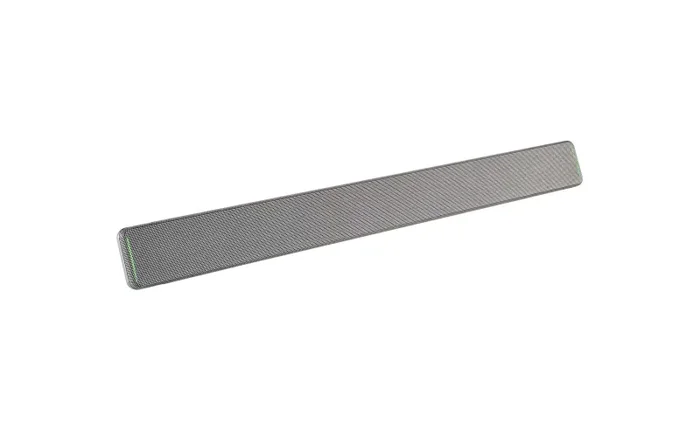

1 Shure MXA710AL-2FT, 2 Feet Microflex Advance Linear Array Microphone – Aluminum
The Shure MXA710AL-2FT, 2 Feet Microflex Advance Linear Array Microphone with an aluminum finish and a sleek design that’s well suited to today’s modern workspaces, the 2′ Shure MXA710 linear array microphone is easy to install and delivers high-quality audio capture for AV conferencing. The versatile, linear form factor can be placed on the wall, ceiling, or tabletop, and a single cable provides Power over Ethernet (PoE) and Dante networking for audio and control data transfer. Built-in proprietary IntelliMix DSP and Autofocus technology provides all the processing needed for echo- and noise-free audio in small spaces, while the unit can be used with the Intellimix P300 DSP (available separately) or Intellimix Room software-based DSP for larger spaces with additional components.
Collaboration Re-Imagined
This 2′ version of the MXA710 uses Steerable Coverage to optimize pick up from 50 built-in MEMS microphones over 4 lobes combined with onboard IntelliMix digital signal processing to capture every voice clearly and intelligibly. IntelliMix DSP includes automatic mixing, acoustic echo cancellation, noise reduction, and automatic gain control. Autofocus technology fine-tunes each lobe position in real time, even if meeting participants lean back or stand up. A single cable supplies power (PoE) and transfers data; Dante and AES67 audio networking protocols are supported.
The default room coverage template enables quick and easy lobe optimization for wall, ceiling, or table installations. The microphone delivers intuitive, programming-free LED mute sync functionality with leading third-party software codecs solutions including Zoom Rooms, Microsoft Teams, Cisco, and Skype for Business when connected to the IntelliMix P300 or ANIUSB-MATRIX Audio Network Interface (both available separately). Offering unprecedented flexibility to meet varying room requirements from small to large, the MXA710 provides premium audio capture at scale that’s easier than ever to configure with Shure Designer software. Shure Audio Encryption can be enabled when used with the IntelliMix P300 Audio Conferencing Processor or Shure Audio Network Interfaces (both available separately), which utilize AES-256 encryption to protect confidential content. Shure Designer System Configuration software provides easy setup and configuration for larger rooms. SystemOn Audio Asset Management software allows for remote management and troubleshooting.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
Compatibility: Shure Microflex Advance
Audio I/O: 1x RJ45 Input/Output
Mobile App Compatible: No
Power Source: PoE
Power Consumption: 10 W (Maximum)
Environmental Resistance: Dust-Resistant (IP5X)
Certifications: CE, UL2043, IEC60529
Operating Temperature: 20 to 104°F / -6 to 40°C
Storage Temperature: –20 to 165°F / -28 to 73°C
Mounting: Back – Multiple Keyholes and Screw Holes
Color: Aluminum
Product Dimensions: 25 x 2.4 x 0.9″ / 636 x 60 x 22.1 mm
Product Weight: 2 lbs. / 0.9 kg
1 Shure IMX-RM8-SUB5, 8-Channel IntelliMix Room Subscription – 5 Years
The Shure IMX-RM8-SUB5, 8-Channel IntelliMix Room Subscription – 5 Years allows you to enjoy the seamless integration of your existing audio network and Shure Microflex wireless systems (all sold separately) with the only software optimized for Shure conferencing microphones. Intellimix Room software requires no DSP hardware installation, and you’ll be up and running in under five minutes. Simple installation, a cleaner aesthetic, and rock-solid Shure audio. IntelliMix Room is compatible with Microflex Advance, Microflex Wireless, and Microflex Complete Wireless systems and runs on Windows 10 and 11 in-room PCs. It makes your computer a Dante endpoint for hassle-free integration with your current network and keeps all communication secure, thanks to built-in Shure Audio Encryption. IntelliMix also supports Microsoft Teams and Zoom Mute Sync, so everybody knows when your mic is live. Plus, with echo-cancellation and optional AI denoiser you can rely on highly intelligible capture and transmission of all your critical information. Quality, convenience, and confidence. Enjoy the future of conferencing with IntelliMix.
IMX-RM8-SUB5 is a 5-year subscription license for up to 8 channels (devices).
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specification:
Digital Signal Processing: Automatic mixing, matrix mixer, acoustic echo cancellation (AEC), noise reduction, automatic gain control, compressor, delay, AI denoiser, equalizer (4-band parametric) , mute, gain (140 dB range)
Frequency Response:
Dante Digital Audio or Virtual Audio Device: 20 to 20,000 Hz
Compatible Devices:
MXA920
MXA910
MXA710
MXA310
P300
IntelliMix Room
ANIUSB-MATRIX
MXN5-C
MXA Network Mute Button
Sampling Rate:
Dante Digital Audio or Virtual Audio Device: 48 kHz
Bit Depth:
Dante Digital Audio: 24 bits
Virtual Audio Device: 24 bits
Audio Signal Type:
Virtual Audio Input: Sums to single mono channel
Virtual Audio Output: Dual mono channels
PC Input: Sums to single mono channel
PC Output: Dual mono channels
Auxiliary Dante Inputs to Dante Out: 17.9 ms
Dante Mic Inputs to Dante Out (AEC enabled): 24.6 ms
Dante Mic Inputs to Dante Out (AEC and NR disabled): 17.9 ms
AI Denoiser Enabled: 45.3 ms
Acoustic Echo Cancellation Tail Length: Up to 300 ms.
Latency Not including Dante latency

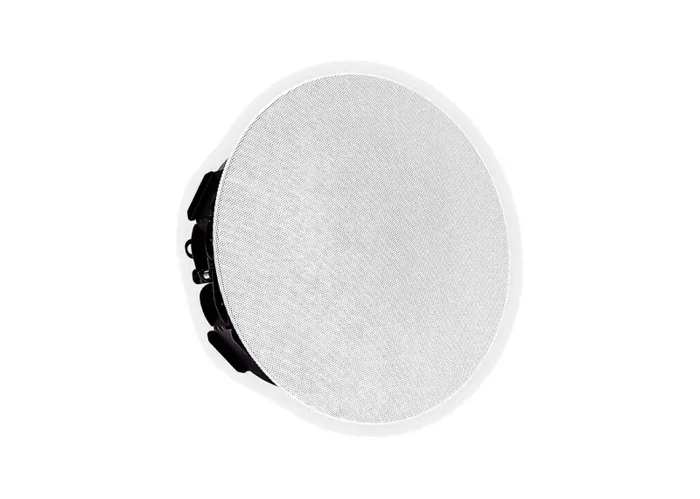

4 Shure MXN5W-C Networked Ceiling Loudspeaker
The Shure MXN5W-C Provides high-quality speech reproduction for AV conferencing applications. PoE-enabled with a low-profile design optimized for easy installation in drop ceiling configurations. Deployed and controlled via software, this networked loudspeaker does not require a separate amplifier or outboard DSP. Integrates seamlessly with Shure’s ecosystem of networked hardware and software for a complete audio solution.
The Microflex MXN5W-C Networked Ceiling Loudspeaker provides high-quality speech reproduction for AV conferencing applications. Gone is the need for a separate amplifier or an outboard DSP, the PoE-powered MXN5 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix DSP, the full Shure networked systems ecosystem delivers premium audio performance with unmatched ease of deployment, with the added confidence of Shure Audio Encryption and Dante Domain Manager compatibility.
Loudspeaker Technical Elements
Pre-tuned frequency response optimized for voice intelligibility in AV conferencing applications. Low-profile, shallow-can design compatible with most drop ceiling installations. 2-way driver system with 5.25 in (13.3cm) woofer. PoE/PoE+ enabled, eliminating the need for an outboard amplifier. Integrated Shure DSP Utilities: EQ, delay, limiter, and signal/tone generator. 2 Dante inputs and 1 Dante output.
Clean Design Elements
Aesthetic design subtly blends into drop ceiling environments. Removable magnetic and paintable grille seamlessly covers the entire loudspeaker. Removable magnetic Shure logo. UL 2043 plenum rated. Tile bridge or New Construction Bracket accessories for quick and easy mounting.
Product Specification:
Crossover Channel Qty: 2-way
Frequency Response: 120 – 20000 hertz
Max Output Level (Max SPL): 98 decibels
Enclosure Design: Bass reflex
Amplifier: Integrated
Connectivity Technology: Wired
Recommended Placing: Ceiling tile mountable
Detachable Grilles: Yes
Connector Type: 2 x Dante input (RJ-45), Dante output (RJ-45)
Length: 14”
Width: 14”
Height: 6.2”
Weight: 9.35 lbs.
4 Shure A-MXN5-TB Tile Bridge for MXN5-C Microflex
The Shure A-MXN5-TB is tile bridge for MXN5-C Microflex networked loudspeaker. A-MXN5-TB Tile Bridge allows for quick and easy drop ceiling installation of the MXN5-C Networked Loudspeaker.
Product Specification:
Length: 24.2”
Width: 16”
Height: 0.8”
Weight: 3.75 lbs.
