Description
Shure 920P W-V Ecosystem Package Including 1 MXA920 Microphone, 1 P300-IMX Audio Processor, 2 MXN5W-C Ceiling Speaker and Tile Bridge
The Shure 920P W-V Ecosystem Package is a streamlined audio solution for professional conferencing. It includes the MXA920W-S Square Ceiling Microphone, delivering precise audio capture, the P300-IMX IntelliMix Processor for seamless audio mixing, and two MXN5W-C Networked Ceiling Speakers for superior sound output. The package also features a A-MXN5-TB Tile Bridge for easy installation, making it perfect for modern collaboration spaces.
This DJ Package Includes,
- 1 Shure MXA920W-S, Square Ceiling Array Microphone – White
- 1 Shure P300-IMX, IntelliMix Audio Conferencing Processor for Seamless Collaboration
- 2 Shure MXN5W-C Networked Ceiling Speaker with Dante (White)
- 1 Shure A-MXN5-TB Tile Bridge for MXN5-C Microflex

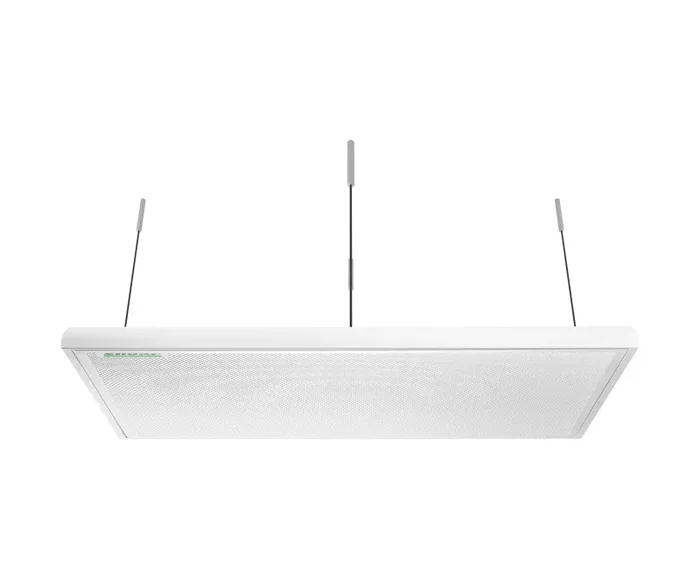

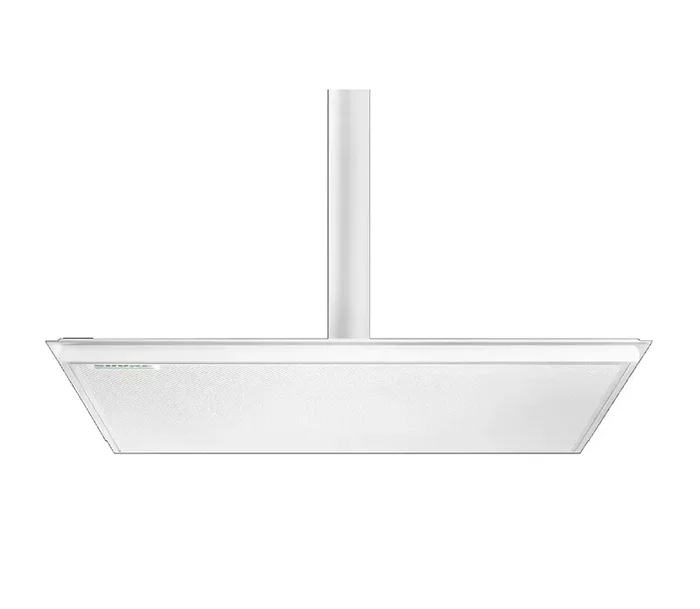

1 Shure MXA920W-S, Square Ceiling Array Microphone – White
The Shure MXA920W-S, Square Ceiling Array Microphone – White is an advanced audio capture solution designed for AV conferencing, camera tracking, voice lift, and sound reinforcement applications. Equipped with Automatic Coverage technology, this round aluminum microphone eliminates the need for complex setup while allowing precise control over audio capture. Its next-generation array architecture enhances directional pickup, delivering natural and intelligible speech quality. Covering a 30 by 30-foot area out of the box, the MXA920W-S lets users define up to 8 adjustable coverage areas via an intuitive web interface. Onboard IntelliMix DSP ensures professional audio mixing, echo cancellation, and noise reduction, making it perfect for modern meeting spaces. Compatible with popular collaboration tools and featuring Shure Audio Encryption for secure communication, the MXA920W-S offers reliable, high-performance audio in any setting.
How It Works
Automatic Coverage technology captures desired talkers while avoiding unwanted noise, covering up to 30 by 30 feet without setup. Users can define up to 8 adjustable coverage areas using a drag-and-drop web interface or opt for Steerable Coverage technology to manually place pickup lobes and mix multiple audio outputs. IntelliMix DSP provides automatic mixing, echo cancellation, noise reduction, and gain control, ensuring pristine audio.
Powerful Features
Next-generation array architecture enhances low-frequency directionality and speech clarity. Advanced talker localization enables accurate camera tracking. Precise coverage control offers superior isolation for voice lift applications. Designer System configuration software supports integration with other Microflex Ecosystem devices. Compatible with Teams-certified bundles, including ANIUSB-MATRIX and P300-IMX DSP.
Quality Details
Available in round and square form factors, the MXA920W-S comes in white, black, and aluminum finishes to complement any interior design. These finishes are also paintable for custom requirements. Certified for Microsoft Teams and other collaboration platforms, the microphone connects via Dante/AES67 digital audio over a single cable, with Shure Audio Encryption for secure communication. The LED status bar is customizable with different colors and brightness settings, allowing for seamless integration with third-party systems.
Certification Required
Shure’s certification program is required to purchase the MXA920W-S, along with the MXA310, MXA710, MXA901, and MXA902 products.
Product Specifications:
Compatibility: Shure Microflex Advance
Audio I/O: 1x RJ45 Output
Power Source: PoE
Shape: Square
Color: White
Power Consumption: 10.1 W (Maximum)
Environmental Resistance: Dust-Resistant (IP5X)
Certifications: FCC Class B Digital, Part 15, CANICES-003, CE
Operating Temperature: 20 to 104°F / -6 to 40°C
Storage Temperature: -20 to 165°F / -28 to 73°C
Mounting: Multiple Ceiling Mount
Product Dimensions: 25 x 2.4″ / 635.4 x 61.3 mm
Product Weight: 12.7 lbs. / 5.8 kg
1 Shure P300-IMX, IntelliMix Audio Conferencing Processor for Seamless Collaboration
The Shure P300-IMX IntelliMix Audio Conferencing Processor is designed to work with the Microflex Wireless (MXW) system to deliver eight channels of acoustic echo cancellation, DSP-processing, and level control for conference rooms and meeting spaces. The processor supports Microflex wireless microphones while also offering versatile input and output connectivity options that allows users to incorporate loudspeakers, computers, mobile devices, and other audio components.
The P300 provides Dante (10 in/8 out), and to connect analog devices, the unit provides two 3-pin block connector inputs and two 3-pin block connector outputs along with a 3.5mm input jack for mobile devices. The USB Type-B port lets you connect computers and other USB devices, while the RJ45 port supplies the unit with power and connects it to other access points in the conference system network.
Clear Audio for Conferences, Panels, and Meetings:
Streamline the audio experience for every discussion. Fixed architecture provides simple setup, requiring less DSP programming and commissioning time. Multiple connectivity options allow for seamless integration with Shure conferencing microphones, laptops, and even mobile devices. Easy, rackless mounting enables quick, compact integration behind a display, under a table, or in a credenza.
Clever Operation:
Intuitive, programming-free LED mute sync functionality with leading third-party software codecs including Zoom Rooms, Microsoft Teams and Skype for Business.
Scale Up:
Easily add a presenter mic or control additional zoned loudspeakers with onboard matrix mixing for sound reinforcement applications.
Connect with Confidence:
Driverless USB audio connection to PCs for soft codecs. Analog I/O for hard codecs. 3.5 mm connection to mobile phones to bridge a remote caller. Design projects offline with Designer System Configuration Software for simple project management. Seamlessly compatible with Microflex Advance and Microflex Wireless conferencing microphones for a complete Shure ecosystem.
Meet In Confidence:
Shure Audio Encryption utilizes AES-256 technology to protect confidential content.
Product Specifications:
Frequency Response: 20 Hz to 20 kHz (+1, -1.5 dB)
Dante Digital Audio:
Sampling Rate: 48 kHz
Bit Rate: 24 Bit
USB Audio:
Sampling Rate: 48 kHz
Bit Rate: 24 / 16 Bit
Latency:
Firmware 4.1 and Newer:
Dante 1-8 In to Dante Out (AEC enabled): 15.4 ms
Dante 1-8 In to Dante Out (AEC disabled): 8.7 ms
Dante 9-10 In to Dante Out: 3.4 ms
Analog In to Analog Out: 3.8 ms
Firmware 3.1 and Older:
Dante 1-8 In to Dante Out (AEC Enabled): 12.5 ms
Dante 1-8 In to Dante Out (AEC Disabled): 5.8 ms
Dante 9-10 In to Dante Out: 1.8 ms
Analog In to Analog Out: 2.2 ms
Acoustic Echo Cancelling:
Tail Length: Up to 300 ms
Analog Connections:
Block Connectors:
Dynamic Range (20 Hz to 20 kHz, A-Weighted, Typical): Analog to Dante: 113 dB, Dante to Analog: 117 dB
Equivalent Input Noise (20 Hz to 20 kHz, A-Weighted, Input Terminated with 150 Ohms):
Line: -86 dBV, Aux: -98 dBV
Total Harmonic Distortion at 1 kHz, 0 dBV Input, 0 dB Analog Gain: <0.05%
Common Mode Rejection Ratio (150-Ohm Balanced Source @ 1 kHz): > 50 dB
Input Impedance: 9.6 Kilohms
Input Clipping Level:
Line: +27 dBV, Aux: +15 dBV
Output Impedance: 80 Ohms
Output Clipping Level:
Line: +20 dBV, Aux: +0 dBV, Mic: -26 dBV
Mobile:
Connector: 1/8″ / 3.5 mm
Pin Assignments: Tip: Audio Input (Left), Ring 1: Audio Input (Right), Ring 2: Ground, Sleeve: Audio Output (To Phone)
Dynamic Range (20 Hz to 20 kHz, A-Weighted, Typical): Analog to Dante: 99 dB, Dante to Analog: 90 dB
Total Harmonic Distortion (at 1 kHz, 0 dBV Input, 0 dB Analog Gain): <0.05%
Input Impedance: 3.7 Kilohms
Input Clipping Level: +4 dBV
Output Impedance: 1.4 Kilohms
Output Clipping Level (Output Terminated with 2.2 Kilohms): -20 dBV
General:
Analog Input: 2 x 3-Pin Block Connector (Active Balanced), 1 x 1/8″ / 3.5mm TRRS Input
Control Software: Shure Designer
Analog Output: 2 x 3-Pin Block Connector (Impedance Balanced)
USB: USB 2.0, Type B (Single Port Carries 2 Input and 2 Output Channels)
Network Connection: 1 x RJ45, 10 x Dante Inputs, 8 x Dante Outputs
Networking: Cat 5e or Higher (Shielded Cable Recommended)
Polarity: Non-Inverting, Any Input to Any Output
Power Requirements: 802.3 at Type 2 (PoE Plus), Class 4
Power Consumption: 17.5 W, Maximum
Thermal Dissipation: Maximum: 17.5 W (60 BTU/Hr), Typical: 14.6 W (50 BTU/Hr)
Operating Temperature Range: 20 to 122° F / -6.7 to 50° C
Storage Temperature Range: -20 to 165° F / -29 to 74° C
2 Shure MXN5W-C Networked Ceiling Speaker with Dante (White)
The Shure MXN5W-C Provides high-quality speech reproduction for AV conferencing applications. PoE-enabled with a low-profile design optimized for easy installation in drop ceiling configurations. Deployed and controlled via software, this networked loudspeaker does not require a separate amplifier or outboard DSP. Integrates seamlessly with Shure’s ecosystem of networked hardware and software for a complete audio solution.
The Microflex MXN5W-C Networked Ceiling Loudspeaker provides high-quality speech reproduction for AV conferencing applications. Gone is the need for a separate amplifier or an outboard DSP, the PoE-powered MXN5 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix DSP, the full Shure networked systems ecosystem delivers premium audio performance with unmatched ease of deployment, with the added confidence of Shure Audio Encryption and Dante Domain Manager compatibility.
Loudspeaker Technical Elements
Pre-tuned frequency response optimized for voice intelligibility in AV conferencing applications. Low-profile, shallow-can design compatible with most drop ceiling installations. 2-way driver system with 5.25 in (13.3cm) woofer. PoE/PoE+ enabled, eliminating the need for an outboard amplifier. Integrated Shure DSP Utilities: EQ, delay, limiter, and signal/tone generator. 2 Dante inputs and 1 Dante output.
Clean Design Elements
Aesthetic design subtly blends into drop ceiling environments. Removable magnetic and paintable grille seamlessly covers the entire loudspeaker. Removable magnetic Shure logo. UL 2043 plenum rated. Tile bridge or New Construction Bracket accessories for quick and easy mounting.
Product Specification:
Crossover Channel Qty: 2-way
Frequency Response: 120 – 20000 hertz
Max Output Level (Max SPL): 98 decibels
Enclosure Design: Bass reflex
Amplifier: Integrated
Connectivity Technology: Wired
Recommended Placing: Ceiling tile mountable
Detachable Grilles: Yes
Connector Type: 2 x Dante input (RJ-45), Dante output (RJ-45)
Length: 14”
Width: 14”
Height: 6.2”
Weight: 9.35 lbs.
1 Shure A-MXN5-TB Tile Bridge for MXN5-C Microflex
The Shure A-MXN5-TB is tile bridge for MXN5-C Microflex networked loudspeaker. A-MXN5-TB Tile Bridge allows for quick and easy drop ceiling installation of the MXN5-C Networked Loudspeaker.
Product Specification:
Length: 24.2”
Width: 16”
Height: 0.8”
Weight: 3.75 lbs.
