Description

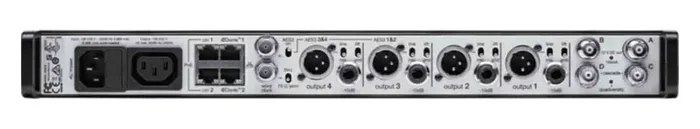

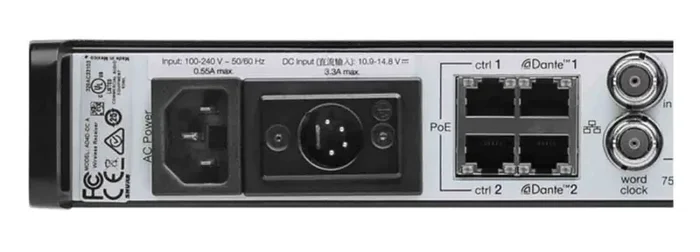

Shure AD4Q-DC Four Channel Digital Wireless Receiver with DC Power Module
The Shure AD4Q-DC is a Four Channel Digital Wireless Receiver with DC Power Module Compatible with all AD series and ADX series transmitters, offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio. The AD4Q Four-Channel Digital Receiver sets a new standard in spectral efficiency. Ground-breaking performance features include wide tuning, low latency, High Density (HD) mode, and Quadversity, ensuring solid performance in the most challenging RF environments.
Product Specifications:
Operating Temperature Range: 0 to 122 °F (−18 °C to 50 °C)
Storage Temperature Range: −20 to 149 °F (−29°C to 65°C)
Latency Standard mode: 2.0 ms
RF Carrier Frequency Range: 470–960 MHz
Working Range: 100 m (330 ft)
Housing: Steel extruded aluminum
Power Requirements: 100 to 240 VAC, 50–60 Hz
0.68 A max
Dimensions: 1.7 × 19.0 × 13.1 in
Weight: 10.1 lb (4.6 kg)
