Description

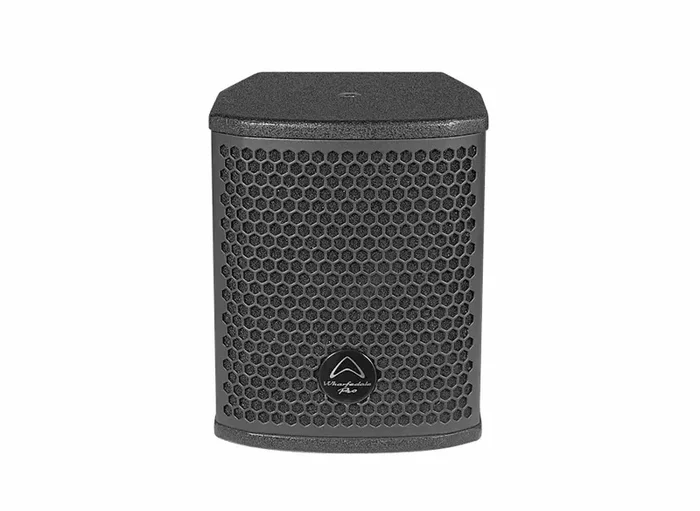

Wharfedale GPL-5 BK, 5-Inches Active Full-Range Speaker
The Wharfedale Pro GPL-5 is a versatile, high-performance loudspeaker designed for professional audio applications. With its robust build and high-quality components, the GPL-5 delivers exceptional sound clarity and reliability. Its high-power handling capabilities make it suitable for a wide range of events, from live performances to installations. The GPL-5 features a well-tuned combination of drivers and advanced design to ensure a balanced frequency response and strong output, even in challenging environments. Ideal for venues and mobile setups, the GPL-5 provides an outstanding audio experience, ensuring high-quality sound delivery for demanding audio professionals.
Birch Plywood
All GPL models use premium Baltic birch plywood construction. Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character. GPL is also covered in our most durable and hard-wearing Rhino Rock paint finish. This ensures that a GPL loudspeaker will always look as good as the day you installed it.
Installation Hardware
Installations can be complicated enough, so Wharfedale Pro have made GPL series as easy as possible.
GPL-5 and GPL-8 are quickly fixed to a wall using the WPB-3 wall bracket or the included steel yoke. GPL-12, GPL-12HQ, GPL-15 and GPL-15HQ are quickly fixed to a wall using the WPB-1 wall bracket or the included steel yoke. These models are also compatible with PowerDrive Series 100 or Omni mount Series 60 installation brackets.
System Solutions
Building a system? How about this one for inspiration? GPL is engineered for any scale of system. Live or install, there is a GPL solution. The system in the diagram uses our Wharfedale Pro DP series amplifiers with downloadable presets for DP-N and DP-F models.
Product Specifications:
System Type: 5″ coaxial passive
Configuration: Two-way
Frequency Response (+/-3 dB) (DP-N preset): 80 Hz – 20 KHz
Frequency Range (-10 dB) (DP-N preset): 68 Hz – 25 KHz
Sensitivity 2.83 V/1 m: 96 dB
Calculated Maximum SPL @1 m: 125 dB
System Peak SPL: 131 dB
System Rated Impedance: 8 Ω
Transducers:
Low-Frequency Transducer:
Size: 155 mm / 5″
Voice Coil Size: 38.1 mm / 1.5″
LF Frame Material: Aluminum
High-Frequency Transducer:
Driver Type: Compression Driver
Coil Size: 38.1 mm / 1.5″
Exit Size: 25.4 mm / 1″
Diaphragm Material: PM4
Waveguide Type: Spherical
Nominal Coverage (H x V): 70° Conical
Special Features:
Shorting cap for extended response
Waterproof LF cone
Driver Brand: Beyma
Power:
System Continuous Power: 200 W
System Programme Power: 400 W
System Peak Power: 800 W
Crossover Frequency: 2.5 KHz
Recommended HPF = BW18dB/oct.: 63 Hz
Connectors:
Input Connector: 2 x SpeakON compatible / 1 x Barrier Strip (T Model barrier strip only)
Rigging & Hardware:
2 x M10 threaded rigging points
4 x M8 threaded points for WPB-3
Included Accessories:
GPL-5 horizontal flying yoke
Enclosure:
Cabinet Type: Trapezoid
Enclosure Material and Finish: 12 mm plywood / Rhino Rock
Colour Options: Black paint
Grille Material & Finish: Powder-coated steel
Product Weight: 5.12 kg / 11.30 lbs.
Product Dimensions: 8″ x 8″ x 9″
Shipping Weight: 5.70 kg / 12.5 lbs.
Shipping Dimensions: 10″ x 10” x 11” inches.
