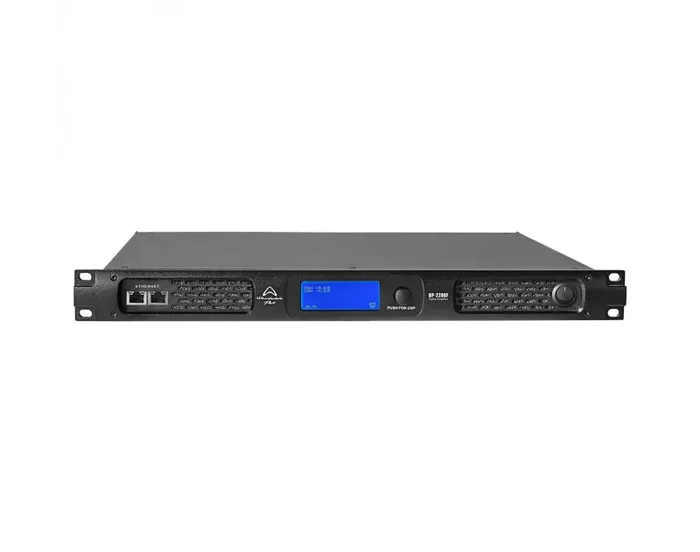

Wharfedale WD-DP-2200F, Series 8 Ohms Dual Channel Amplifier – 2000 Watts
The Wharfedale DP-2200F Series 8 Ohms Dual Channel Amplifier – 2000 Watts with two discrete amplification channels. It uses internal DSP and computer control for excellent performance, all editable with the supplied editing software. This software is easy to connect to, with control via Ethernet Network connectors on the front of the unit, also allowing for remote performance monitoring.
The DP-2200F delivers a huge output power, and is stable all the way down to 2 Ohms, allowing you to drive multiple 8 ohm or 16-ohm speakers with extreme power. Plus, multiple FIR filters allow for independent control of magnitude and phase, detailed equalization, and optimization of frequency and power response. In addition, it is compatible with both 70 V and 100 V systems, so can be used for a range of speaker configurations.
Product Specifications:
Rated Power:
8 Ω / Stereo: 2 x 2000 W
4 Ω / Stereo: 2 x 3400 W
2 Ω / Stereo: 2 x 4760 W
16 Ω / Bridge: 1 x 4000 W
8 Ω / Bridge: 1 x 6800 W
4 Ω / Bridge: 1 x 9520 W
100 V Hi-Z: 2 x 3400 W
70 V Hi-Z: 2 x 2400 W
Output RMS voltage: 126.5 V
Maximum Input Level: 8.7 Vrms (+21 dBu) (Default Gain)
Default Gain (Rated Power,1 KHz): 24 dB
Gain (Rated Power,1 KHz): 24 dB 42 dB
THD+N: Typical value: 0.05% (10% Rated Power,8 Ω)
Cross-Talk: ≥90 dB (20 Hz-1 KHz, Below Rated Power,8 Ω)
Frequency Response: Typical value: +0, -0.5 dB (10% Rated Power,20 Hz-20 KHz,8 Ω)
Input Impedance: 20 kΩ(Balance),10 kΩ(Unbalance)
Damping Factor: ≥1000(20 Hz-200 Hz,8 Ω)
SNR: ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω)
Main Power: 90 260 VAC,50/60 Hz
Protection:
Power under-voltage protection
Amplifier output DC protection
Thermal Protection
Temperature Power Control
Overload Power Control
Dimensions (W×H×D): 483 x 45 x 376 mm
Net Weight: 9.3 kg
