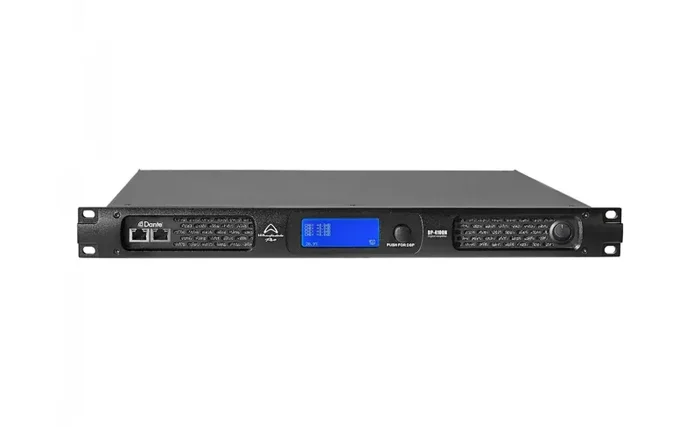

Wharfedale WD-DP-4100N, 4-Channel Power Amplifier with Dante Connectivity – 4 x 1700 Watt
The Wharfedale WD-DP-4100N 4-Channel Power Amplifier with Dante Connectivity is a cutting-edge solution for professional audio applications, offering unparalleled power and advanced networking capabilities. Featuring Dante connectivity, it integrates seamlessly into modern digital audio systems, ensuring efficient and reliable audio distribution over IP networks. With a total power output of up to 4100W, this amplifier delivers clean, distortion-free audio for live events, installations, and public address systems. Its lightweight 1U rack-mountable design, coupled with advanced features like FIR filters and active cooling, ensures precise sound performance and stable operation in demanding environments. Designed for versatility and durability, the WD-DP-4100N is the perfect choice for professional-grade audio setups.
Product Specifications:
Rated Power:
8 Ω / Stereo: 4 x 1000 W
4 Ω / Stereo: 4 x 1700 W
2 Ω / Stereo: 4 x 2890 W
16 Ω / Bridge: 2 x 2000 W
8 Ω / Bridge: 2 x 3400 W
4 Ω / Bridge: 2 x 5780 W
70 V Hi-Z: 4 x 1700 W
Output RMS voltage: 89.4 V
Maximum Input Level: 8.7 Vrms (+21 dBu) (Default Gain)
Default Gain (Rated Power,1 KHz): 21 dB
Gain (Rated Power,1 KHz): 21 dB 39 dB
THD+N: Typical value:0.05% (10% Rated Power,8 Ω)
Cross-Talk: ≥90 dB (20 Hz-1 KHz, Below Rated Power,8 Ω)
Frequency Response: Typical value: +0, -0.5 dB (10% Rated Power,20 Hz-20 KHz,8 Ω)
Input Impedance: 20 kΩ(Balance),10 kΩ(Unbalance)
Damping Factor: ≥1000(20 Hz-200 Hz,8 Ω)
SNR: ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω)
Main Power: 90 260 VAC,50/60 Hz
Protection:
Power under-voltage protection
Amplifier output DC protection
Thermal Protection
Temperature Power Control
Overload Power Control
Net Weight: 9.1 kg
Dimensions (W×H×D): 483 x 45 x 376 mm
