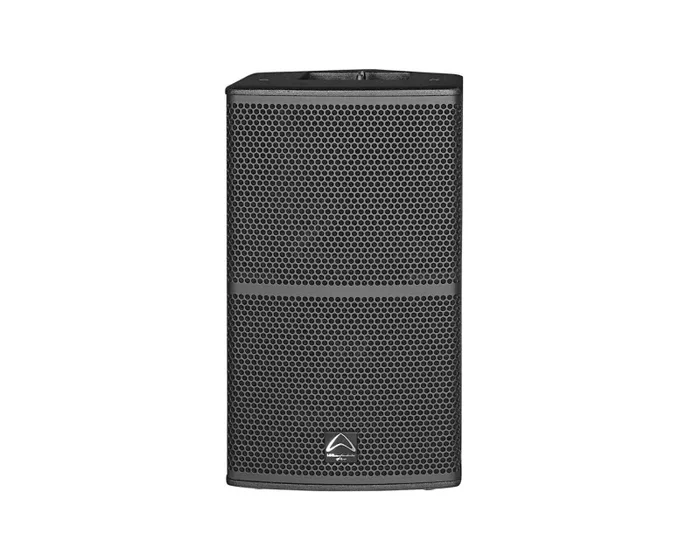

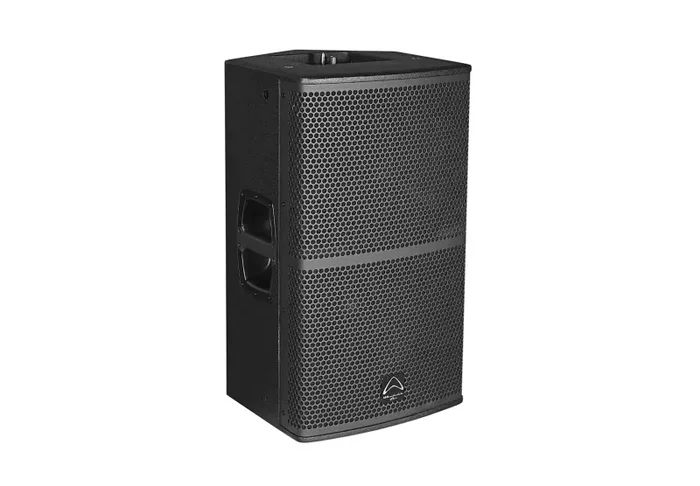

Wharfedale WLA-12MA, 12-Inches Active Monitor Loudspeaker
The Wharfedale Pro WLA-12MA is a versatile 12-inch active monitor loudspeaker designed for professional audio applications, particularly for live sound and stage monitoring. Featuring a high-performance 12-inch low-frequency driver and a 1-inch high-frequency compression driver, the WLA-12MA delivers clear, accurate sound with excellent high-frequency detail and punchy bass response. Its Class D amplification ensures efficient power delivery while maintaining high performance and reliability. The speaker is housed in a rugged, durable enclosure with a sleek, compact design, making it easy to transport and position for on-stage use. Ideal for use in concerts, live performances, and fixed installations, the WLA-12MA provides high-quality sound reinforcement, allowing performers to hear themselves with clarity and precision.
Internal DSP with FIR
8 x DSP Presets – built in – including FIR. Easy to get great results – fast.
Software Control
The network connection uses RS485 protocol and gives GUI control over the DSP parameters of each element in the array.
Versatile Configuration
The WLA-A Series active monitors feature….
35 mm pole sockets PLUS 8 x M10 rigging points. This means that they can be used in a wide variety of applications. From install to onstage. From FOH to monitor.
Product Specifications:
System Type: Active 12” 2-way Monitor Bi-Amplified
Frequency Response (+/-3 dB): 55 Hz – 20 KHz
Frequency Range (-10 dB): 50 Hz – 20 KHz
Loudspeaker Sensitivity @ 1 W / 1 m: 98 dB
Maximum SPL (peak) @ 1 m: 131 dB
Nominal Coverage (H x V): 90° x 60°
Signal Processing: DSP-based with 8 FIR presets resident in the Input Module
Amplifier Design: Class D
Power Rating:
Peak: 1500 W (1300 W LF + 200 W HF)
Continuous: 750 W (650 W LF + 100 W HF)
Power on Protection: Power switch on/off mute
Thermal Protection: Amplifier shut down with auto reset
Low Line Voltage Shut Down: 80% of nominal line voltage
Driver Protection: Independent L/H Limiters and DC
DC and Short Protection: Yes
Limiter Indicator: Red LED
Signal Indicator: Green LED
Power/Active Indicator: White LED
Find Function Indicator: Blue LED
Input Sensitivity: +4 dBu
Maximum Input Level: +18 dBu
Input Impedance:
Balanced: 10 KΩ
Input Connector: XLR / 1/4” Combo Jack
Link Connector: Balanced pin XLR connector
USB Type B: Yes (for updates)
NETWORK (RS485): RJ45
AC Power Options: AC 100–120 V~/ 220–240 V~, 50/60 Hz
AC Input Connector: powerCON
AC Loop Through Connector: powerCON
Hardware – Rigging: M10 x 8
Enclosure Material and Finish: 15 mm Plywood
Colour Options: Black paint
Grille Material & Finish: 1.5 Steel
Product Weight: 26.5 Kg / 58.3 lbs.
Product Dimensions: 16 x 15 x 26
Shipping Weight: 28.8 Kg / 63.4 lbs.
Shipping Dimensions: 18 x 19 x 29
